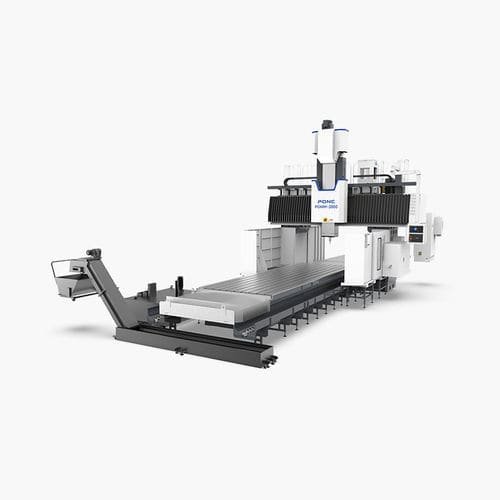

3-axis CNC milling machine PGMH series
verticalbridgeBT 50

3-axis CNC milling machine - PGMH series - PONC CNC - vertical / bridge / BT 50
3-axis CNC milling machine - PGMH series - PONC CNC - vertical / bridge / BT 50
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
bridge
Spindle mount
BT 50
Number of tool stations
24 tools, 40 tools, 32 tools
Associated functions
drilling, tapping
Applications
for the mold industry
Other characteristics
high-performance, high-rigidity
X travel

4,200 mm, 6,200 mm, 8,500 mm
(165.35 in, 244.09 in, 334.65 in)

Y travel

3,700 mm
(145.67 in)

Z travel

1,000 mm
(39.37 in)

Rotational speed

6,000 rpm
(37,699 rad.min-1)

Power

17 kW, 25.5 kW
(23.11 hp, 34.67 hp)

Work feed X-axis

15 m/min

Work feed Y-axis

15 m/min

Work feed Z-axis

12 m/min

Table load capacity

15 t, 22 t, 30 t
(17 us ton, 24 us ton, 33 us ton)

Tool weight (max)

18 kg
(39.7 lb)

Positioning accuracy

0.015 mm, 0.025 mm, 0.035 mm, 0.045 mm
(0.00059 in, 0.00098 in, 0.00138 in, 0.00177 in)

Repeatability

0.01 mm, 0.015 mm, 0.025 mm, 0.035 mm
(0.00039 in, 0.00059 in, 0.00098 in, 0.00138 in)

Weight

45 t, 51 t, 57 t
(49.6 us ton, 56.22 us ton, 62.83 us ton)

Overall length

12,000 mm, 16,000 mm, 20,000 mm
(472.4 in, 629.9 in, 787.4 in)

Overall width

6,800 mm
(267.7 in)

Overall height

5,300 mm
(208.7 in)

Description

Configure the W-axis to increase the height range ofthe machined workpiece andimprove the machining performance. Compared with the fixed-beam machine, the height range ofthe workpiece is largerand the W-axis stroke and Z-axis stroke can be superimposed, which can effectively preventthe ram from extending too long and affect the machining rigidity. Widelyused in the processing ofmolds, structural parts, textile machineryand other parts. TRAVELS - Distance from spindle nose to worktable mm - 250~1250 Distance between columns mm - 3200 WORKTABLE - Size of worktable - mm - 2500×4000/6000/8000 T-slots specification / - 28×200 SPINDLE - Spindle torque N·m - 723/1087(S1/S6-40%) Cross section of ram mm - 400×400 TOOL MAGAZINE (OPTIONAL) - Max. tool diameter (fully loaded) - mm Ф105 Max. tool diameter (empty loaded) - mm Ф210 Max. tool length - mm - 350 AXIS FEED RATES - Cutting feed rate X/Y/Z m/min 8/8/8 MECHANICAL SPECIFICATION - Required pneumatic pressure - kg/cm² - 6 cnc system - / - SIEMENS/FANUC
