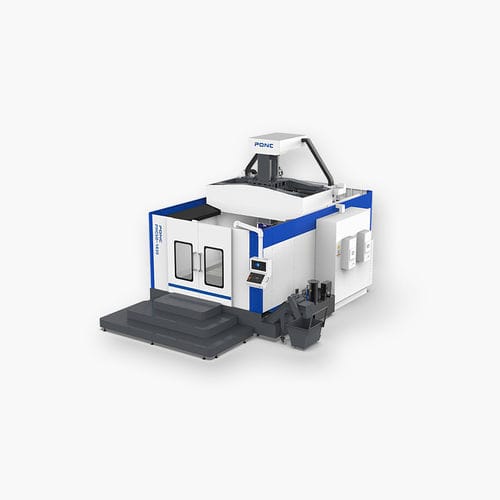

5-axis CNC machining center PHC5D series

verticalgantryHSK A-63

The PHC5D model machine has capability functions of milling, boring, drilling,reaming and tapping. This machine is a compact bridge type gantry machining center, all the movementaxes are above the left and right walls of the machine bed. The worktable is fixedthe weight of the workpiece does not affect the processing accuracy. The moving part adopts the box-in-box structure.During the cutting process, theforce on the surroundings of this structure is balanced, which effectively improvesthe stability of the machine tool during processing, and this thermally symmetricaldesign makes the machine tool less susceptible to harsh environments. TRAVELS - Distance from spindle nose to worktable mm - 0~800 Distance between columns mm - 2250 WORKTABLE - Size of worktable - mm - 1600×3000/4000/6000 Max. worktable load T/m² 5 Pitch of T slot - / - 22H7;250 SPINDLE - Spindle torque N·m - 30/36(S1/S6) Cross section of ram mm - 450×450 TOOL MAGAZINE (OPTIONAL) - Max. tool diameter (fully loaded) - mm Ф80 Max. tool diameter (empty loaded) - mm Ф150 Max. tool length - mm - 250 AXIS FEED RATES - Cutting feed rate X/Y/Z m/min 15/15/15 MECHANICAL SPECIFICATION - Required pneumatic pressure - kg/cm² - 6 cnc system - / - SIEMENS/FANUC
