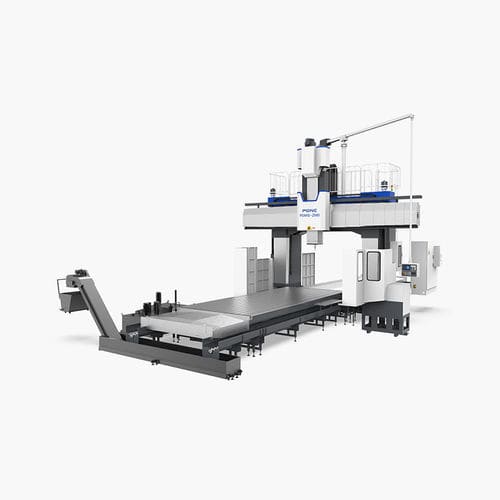

3-axis CNC milling machine PGMG series
verticalbridgeBT 50

3-axis CNC milling machine - PGMG series - PONC CNC - vertical / bridge / BT 50
3-axis CNC milling machine - PGMG series - PONC CNC - vertical / bridge / BT 50
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
bridge
Spindle mount
BT 50
Number of tool stations
40 tools, 60 tools
Associated functions
drilling, tapping
Applications
heavy-duty
X travel

4,200 mm, 6,200 mm, 8,500 mm
(165.35 in, 244.09 in, 334.65 in)

Y travel

3,900 mm
(153.54 in)

Z travel

800 mm
(31.5 in)

Rotational speed

6,000 rpm
(37,699 rad.min-1)

Power

17 kW, 25.5 kW
(23.11 hp, 34.67 hp)

Work feed X-axis

15 m/min

Work feed Y-axis

15 m/min

Work feed Z-axis

10 m/min

Table load capacity

15 t, 22 t, 30 t
(17 us ton, 24 us ton, 33 us ton)

Tool weight (max)

25 kg
(55.1 lb)

Positioning accuracy

Max.: 0.045 mm
(0.00177 in)

Min.: 0.012 mm
(0.00047 in)

Repeatability

Max.: 0.035 mm
(0.00138 in)

Min.: 0.008 mm
(0.00031 in)

Weight

55 t, 60 t, 65 t
(60.63 us ton, 66.14 us ton, 71.65 us ton)

Overall length

12,000 mm, 16,000 mm, 20,000 mm
(472.4 in, 629.9 in, 787.4 in)

Overall width

7,800 mm
(307.1 in)

Overall height

6,500 mm
(255.9 in)

Description

Configure the W-axis to increase the height range ofthe machined workpiece andimprove the machining performance. Compared with the fixed-beam machine, the height range ofthe workpiece is largerand the W-axis stroke and Z-axis stroke can be superimposed, which can effectively preventthe ram from extending too long and affect the machining rigidity. Widelyused in the processing ofmolds, structural parts, textile machineryand other parts. TRAVELS - W-Axis mm 1300 Distance from spindle nose to worktable mm - 0~2100 Distance between columns mm - 3200 WORKTABLE - Size of worktable - mm - 2500×4000/6000/8000 T-slots specification / - 28×200 SPINDLE - Spindle torque N·m - 723/1087(S1/S6-40%) Cross section of ram mm - 400×400 TOOL MAGAZINE (OPTIONAL) - Max. tool diameter (fully loaded) - mm Ф125 Max. tool diameter (empty loaded) - mm Ф250 Max. tool length - mm - 400 AXIS FEED RATES - Cutting feed rate X/Y/Z m/min 6/6/6 MECHANICAL SPECIFICATION - Required pneumatic pressure - kg/cm² - 6 cnc system - / - SIEMENS/FANUC
