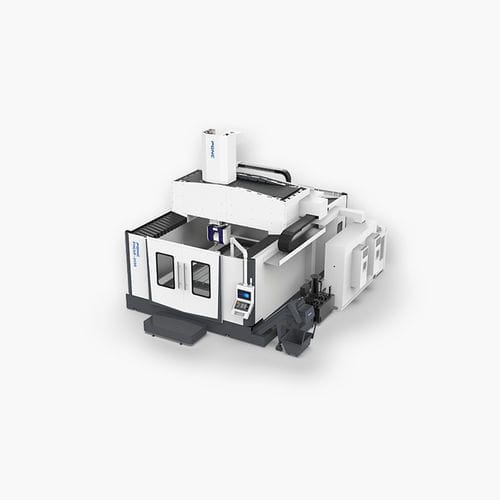

5-axis CNC machining center PHC5D-1630/40L

verticalgantryHSK A-63

1.The equipment adopts an integrated U-shaped bed worktable, with all motion axes above the walls of the bed. Combined withthe moving parts of the box in box structure, effectively improving the sta bility and rigidity of the machine tool during processing 2.The X and Y axis is driven by a linear motor, the Ac five axis head is driven by a torque motor, and there is no intermediatetransmission link; High dynamic response can be achieved during acceleration and deceleration, thereby achieving stablemachining accuracy. 3.Five axis linkage, one clamping can complete multi face machining of complex curved workpieces. Widely used in mechanicalequipment manufacturing industries such as automobiles, shipbuilding, aerospace, and molds. TRAVELS - Distance from spindle nose to worktable mm - 0~1000 Distance between columns mm - 2350 WORKTABLE - Size of worktable - mm - 1600×3000/4000 Pitch of T slot - / - 22H7;250 SPINDLE - Spindle torque N·m - 30/36(S1/S6) Cross section of ram mm - 450×450 TOOL MAGAZINE (OPTIONAL) - Max. tool diameter (fully loaded) - mm Ф80 Max. tool diameter (empty loaded) - mm Ф150 Max. tool length - mm - 250 AXIS FEED RATES - Cutting feed rate X/Y/Z m/min 20/20/15 Required pneumatic pressure - kg/cm² - 6 cnc system - / - SIEMENS/FANUC
