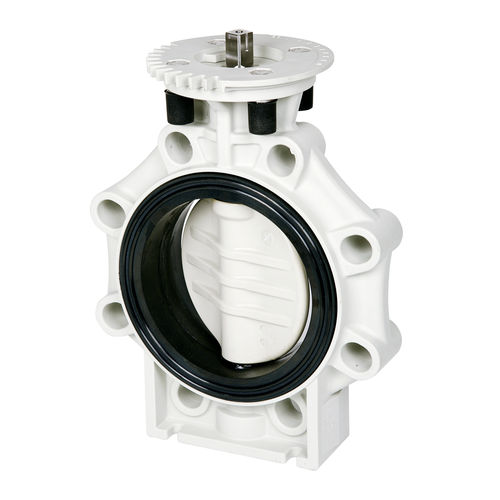

Butterfly valve K4 pneumaticelectricfor liquid food products and beverages
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatic, electric
- Media
- for liquid food products and beverages
- Body
- flange, lug type
- Applications
- hygienic
- Material
- PP
- Other characteristics
- ISO, DIN, ANSI, with seal
- DN
Min.: 65 mm
(2.559 in)Max.: 250 mm
(9.843 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 100 °C
(212 °F)- Flow rate
Min.: 73 l/min
(19.28 us gal/min)Max.: 57,600 l/min
(15,216.31 us gal/min)
Description
Double sealed shaft
Encapsulated wetted parts
Integrated brackets for fix point mounting
Mounting between DIN, ANSI, JIS flanges
ISO 5211 flange type (F07, F10)
Approvals - EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
Catalogs
Butterfly Valve K4
7 Pages
Wafer check valve K4
6 Pages
