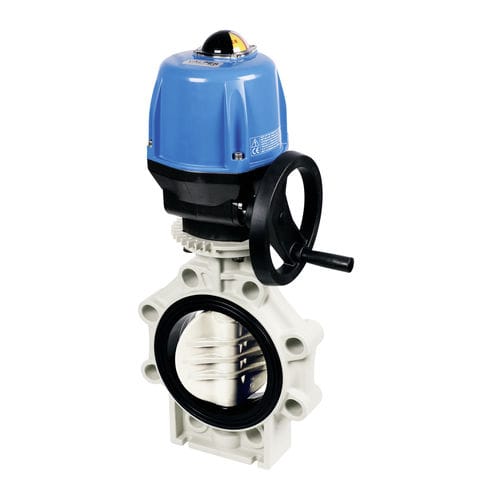

Butterfly valve K4 electrically-actuatedfor liquid food products and beverageslug type
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electrically-actuated
- Media
- for liquid food products and beverages
- Body
- lug type, IP65, IP67
- Material
- PP
- DN
Max.: 200 mm
(7.874 in)Min.: 65 mm
(2.559 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 38,000 l/min
(10,038.54 us gal/min)Min.: 73 l/min
(19.28 us gal/min)
Description
Installation without additional adaptor or screws
Manual override
Position indication
Torque and force limiters
Travel time 6–50 sec
Accessories:
Fail-safe
Multivoltage
4–20 mA Positioner
Approvals - EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
