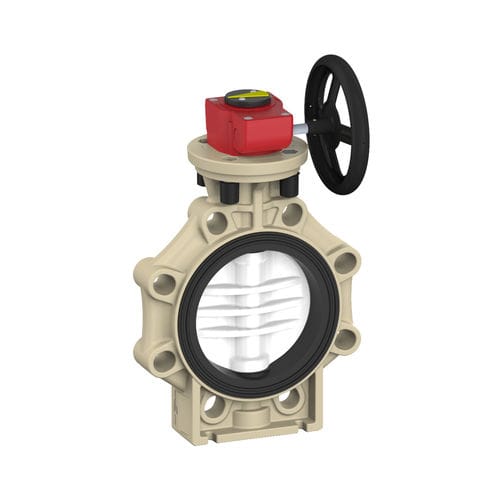

Butterfly valve K4
with handwheelPVDFflange

butterfly valve
butterfly valve
butterfly valve
Add to favorites
Compare this product


Characteristics

Type
butterfly
Operation
with handwheel
Body
flange, PVDF, IP67
Applications
hygienic
Other characteristics
locking
DN

Min.: 65 mm
(2.559 in)

Max.: 250 mm
(9.843 in)

Pressure

10 bar
(145 psi)

Temperature

Min.: 0 °C
(32 °F)

Max.: 120 °C
(248 °F)

Flow rate

Min.: 73 l/min
(19.28 us gal/min)

Max.: 57,600 l/min
(15,216.31 us gal/min)

Description

Only sleeve gasket and disc in touch with medium Double sealed shaft Integrated bracket for fix point mounting Variable locking positions 90° ±5° adjustable Fixed position of the disc due to self-locking gear mechanism Smooth running of gear wheel due to high coefficient worm gear Less space needed compared to hand lever Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
