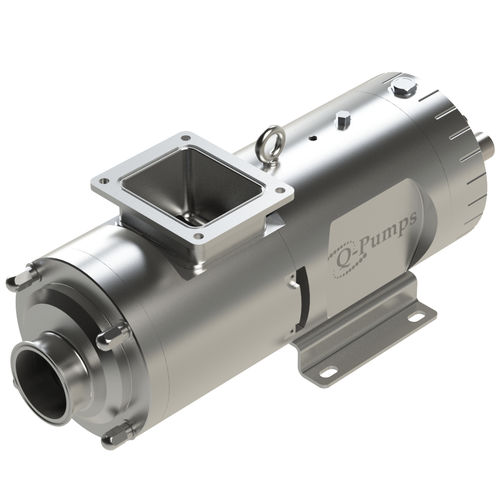

2 screws pump QTS Series
for chemicalsbeveragefor dairy products

2 screws pump
2 screws pump
2 screws pump
Add to favorites
Compare this product


Characteristics

Media
for chemicals, beverage, for dairy products, for cream, oil
Operation
electric
Priming
self-priming
Technology
2 screws
Domain
for the food industry, for the pharmaceutical industry, sanitary, for the cosmetics industry, medical
Material
stainless steel
Fluid specification
for viscous fluids
Protection level
chemical-resistant
Other characteristics
with mechanical seals, high-performance, high-flow, low-noise level, variable-speed, low-vibration, vertical-mount, O-ring face seal, bi-directional, rotary with rectangular inlet and outlet
Flow

Max.: 850 us gal/min (3,217.6 l/min)

Min.: 70 us gal/min (264.9788 l/min)

Description

The QTS is a twin screw pump, 100% sanitary use and ideal as a CIP and Process pump, which reduces time and maintenance costs Certifications: 3-A, FDA and EHEDG Characteristics - Self-priming - Manufactured in 100% stainless steel , wet parts in SS 316L - Speed up to 3000 rpm* - Can handle products with up to 60% entrained air. - Clamp connections (standard) and DIN, SMS, Bevel Seat connections available. - Single and double mechanical seal - Stainless steel rough use bearing box - Option to increase size of suction and discharge connections - Optimized rotors - Narrow tolerances for vacuum capacity - Stainless steel base available for NEMA or IEC Advantages - Pulsation-free - 100% high-speed CIP - Constant flow - Easy assembly and disassembly - Ideal for abrasive products - No contact between casing and rotor working at high pressures - Great suction capacity that eliminates low NPSH problems - Gentle handling of cut-sensitive products. - 100% drainable - Bidirectional: It is possible to recover the product from the line due to being reversible

Catalogs

QTS Series
QTS Series
8 Pages
All Series
All Series
20 Pages
