Description

Product overview

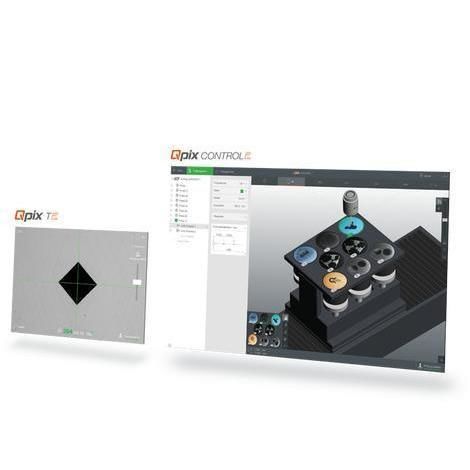

  • Qpix T2 is a full-screen hardness testing software for touch-screen devices, consolidating core functions and prioritized test results on a single, touch‑optimized interface for efficient laboratory and production workflows.


Key features
  • Full-screen mode: single-screen layout displaying essential functions and test priorities for fast access during serial testing.
  • Multi-touch operation: supports multi-touch gestures for zoom and intuitive menu navigation on modern touch displays.
  • Row test sequencing: predefine test programmes with fixed numbers of test points; supports manual slide, digital micrometer spindle and position-feedback selection.
  • Save/Delete & Export: store and archive protocols, recall with one click; designed for batch testing and in‑line integration.
  • Protocol & data export: export formats include Qpix T2 PDF, XLSX, DOCX, XML and CSV; direct result transmission via RS232 or Ethernet.
  • Dynamic height adjustment: enables quick and precise positioning (notably with Q250/750/3000E devices); supports automatic test start after clamping and selectable release options.
  • Advanced test block management (Calibration Manager): scheduled calibration reminders, statistical profile updates, tolerance overview and long‑term trend tracking; online retrieval of Qness test block data.
  • Online support mode: enables remote connection with Qness or service partners for assistance and simplified software updates.


Suitable for
  • Qness 60 M EVO
  • Qness 250/750/3000 C/CS
  • Qness 250/750/3000 M/MS/E
  • Qness 150 R (Qpix T2R)


Technical specifications
  • User interface: full-screen, touch‑optimized (multi‑touch navigation and zoom).
  • Test sequencing: predefined row sequences with multiple selection modes.
  • Data handling: save, create and archive protocols; batch/serial test support.
  • Export formats: PDF (Qpix T2), XLSX, DOCX, XML, CSV.
  • Interfaces: RS232 and Ethernet for direct result transmission.
  • Height handling: dynamic height adjustment and automatic test start after clamping; selectable release options.
  • Calibration management: reminders, tolerance overviews, long‑term trend analysis and online test block data retrieval.
  • Support: online support mode for remote assistance and software updates.
