Materials analysis software Qpix Control2

Overview
Qpix Control2 is a next-generation hardness testing software offering sample management up to live image and 3D-Smartview. Developed with customer input to guarantee user-friendliness, it provides controlled test head movement with automatic height adjustment and contact-free gauging, full integration of Qness sample holders, CAD compatibility for 3D component imaging, and a variety of 3D control elements and view angles.

Suitable for

• Qness 60 A / A+ EVO
• Qness 150 A / A+
• Qness 250 / 750 / 3000 A / A+
• Qness 250 / 750 CA / CA+

Key features

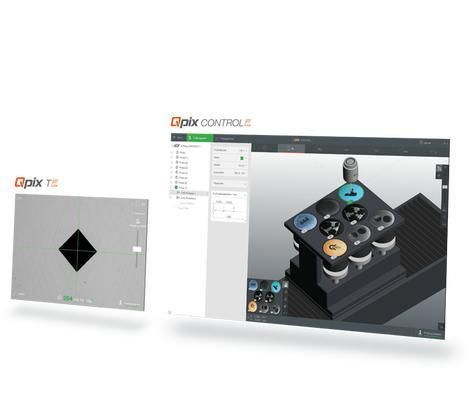

• 3D Smartview: multiple easily comprehensible 3D control elements and view angles
• CAS technology (Collision Avoidance System): generates 3D preview calculations of all movements to protect mechanical components
• Controlled test head with automatic height adjustment and contact-free gauging
• CAD compatibility for 3D component imaging

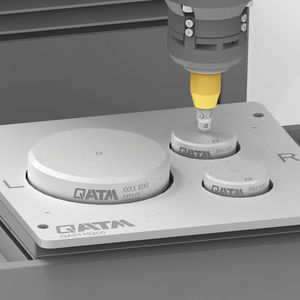

• Full integration of Qness sample holders and automatic machine movement to sample holder height
• Automatic imaging of samples (before and after test sequences)

Operation workflow — 3 steps to the result

• 1. Load samples: machine moves automatically to sample holder height and takes an image of the sample automatically
• 2. Load row: SRS (Speedy Row Set-up) — drag the row of test points to the desired position; Auto-Snap corrects the starting point automatically
• 3. Start test sequence: executed according to the applicable hardness testing standards

Serial and data functions

• Multiple-sample management: handle several samples at the same time, including mixed sample types in one mould
• Template Management: graphic presentation of stored templates with detailed descriptions and selectable guidelines
• Optimum Stop and time-saving test modes (e.g., 'Complete all indentations - then evaluate')
• Professional Data Management: configurable protocol and data presentation, structuration options for stored test item data and configurable export/protocol content
• Advanced Test Block Management and Qness Calibration Manager with reminders for checks and easy addition of test results to statistical profiles

Specialized functions

• Welding Sample Tools: polygon line tests, marking and guide circles for precise positioning in heat affected zones
• Sinter Functions: grouping of test points to compute averages and deletion of anomalies in hardness profiles
• Predictive calculation of test points: displays expected indentation size and warns when points are too close
• Panorama Image Function: clear images from very small to very large test items; programmable automatic imaging

Intelligent options

• Edge Recognition: automatic fine-position correction using program templates and the edge recognition module
• Contour Scan: measurement lens scans contours and stores data for automatic programming of test points at chosen distances
• 2D / 3D Mapping: coloured graphic representation of hardness distribution across segments or entire surfaces; freely rotatable 3D views

Technical specifications

• Software name / model: Qpix Control2
• Collision Avoidance System (CAS) for movement pre-calculation
• Automatic height adjustment of test head and contact-free gauging
• CAD compatibility and 3D component imaging support
• Panorama imaging for sample and measurement cameras; programmable before/after imaging
• Template management with graphic presentation and selectable guidelines
• Serial functions: multiple sample handling, Speedy Row Set-up (SRS), Auto-Snap, Optimum Stop
• Data management: configurable protocol and export formats, statistical profile integration
• Optional modules: Edge Recognition, Contour Scan, 2D/3D Mapping
• Specialized test support: Welding sample tools, Sinter functions, predictive indentation calculation
• Compatible with Qness series hardness testers (see suitable for list)
