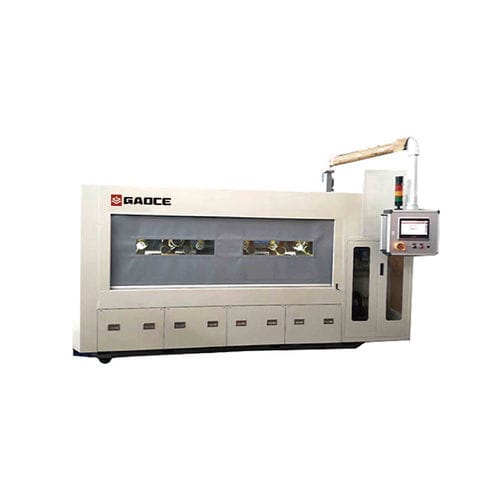

Diamond wire cutting machine GC-MAWS210

diamondfor metalblocks

Product introduction

• Specialized single-wire cutting machine for magnetic materials using diamond wire, designed for precise slicing of magnetic rods and blocks.
• Equipped with 20 independent workstations; supports synchronous processing of all 20 stations for high-volume production and single-station independent operation for flexible small-batch sampling.
• Greater process flexibility compared with multi-wire magnetic-material cutters: slice thickness adjustable between 10–140 mm without re-grooving rollers; after each cut the machine automatically advances the material to the set thickness and starts the next automatic cut, improving throughput and operator convenience.

Product parameters
Item | Unit | Parameter
Max. processing size | mm | 140(W)×200(L)×180(H)
Workstation quantity | - | 20
Slice thickness | mm | 10–140
Max. wire speed | m/min | 1300
Feeding direction | - | Vertical upward
Feeding speed | mm/min | 0.1–9
Wire diameter | mm | 0.25–0.35
Maximum wire storage capacity | km | 30 (0.25 mm diamond wire)
Equipment dimensions | mm | Approx. 3250(L)×1700(W)×2450(H)
Equipment weight | t | Approx. 5

Features / Technical specifications

• Model: GC-MAWS210
• Application: single-wire cutting of magnetic materials with diamond wire
• Stations: 20 independent workstations; supports 20-station simultaneous processing and single-station operation
• Slice thickness range: 10–140 mm (adjustable without re-grooving rollers)
• Max. wire speed: 1300 m/min; Feeding speed: 0.1–9 mm/min
• Wire diameter: 0.25–0.35 mm; Maximum wire storage: 30 km (0.25 mm diamond wire)
• Max. processing size: 140(W)×200(L)×180(H) mm
• Equipment dimensions: Approx. 3250×1700×2450 mm; Equipment weight: Approx. 5 t
