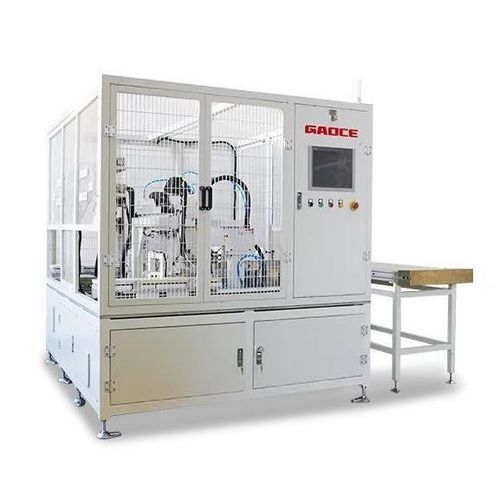

Automatic gluing machine GC-MAZ

magnet

Product Name
GC-MAZ Automatic Magnetic Material Bonding Machine

Overview
Specialized equipment for the pre-cut bonding process of magnetic material thick sheets. Designed to perform high-throughput bonding of thick magnetic blocks with consistent positioning and straightforward operation. Key focus: efficient bonding, wide compatibility with square blocks, precise repeatable positioning, and integration on production lines.

Product Parameters
Item | Unit | Parameter
Repeatability positioning accuracy | mm | ±0.05
Block shape | - | Square
Block dimension | mm | Max. 60 (L) × 50 (W) × 50 (H)
Marble slab dimension | mm | Length: 600–1000; Width: 130–180
Workstation quantity | - | 2
Cycle time (single station) | s/pc | 3
Bonding height | mm | 40–170
Equipment dimensions | mm | 2100 (L) × 2000 (W) × 2400 (H)
Equipment power | kW | 7

Applications & Advantages

• Suitable for high-efficiency bonding of thick magnetic material sheets used before cutting operations
• High bonding throughput and compatibility with multiple square block sizes
• High positioning precision (repeatability ±0.05 mm) ensures consistent bond quality
• Short cycle time per single station (~3 s/pc) and dual-station layout to increase output
• Compact footprint and moderate power rating for easier production-line integration

Features / Technical Specifications

• Model: GC-MAZ
• Repeatability positioning accuracy: ±0.05 mm
• Block shape: Square
• Maximum block size: 60 × 50 × 50 mm (L×W×H)
• Compatible marble slab size: Length 600–1000 mm; Width 130–180 mm
• Number of workstations: 2
• Cycle time (single station): approx. 3 s/pc
• Bonding height range: 40–170 mm
• Machine dimensions (L×W×H): 2100 × 2000 × 2400 mm
• Rated power: 7 kW
