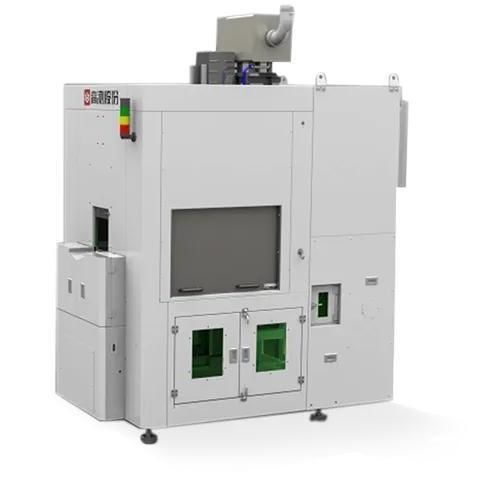

Diamond wire cutting machine GC-CQ1660H

multi-wirefor metalsheet

Product Introduction
This equipment is a specialized multi-wire diamond-wire cutting machine for magnetic materials, engineered for high rigidity, operational stability and high processing precision suitable for ultra-thin sheet production.

Core product features

• Cast machine bed and other core components for enhanced rigidity; rollers use a double-cone positioning structure paired with servo-motor synchronous direct-drive to improve spindle rigidity and stability at high speed.
• Ultra-high processing precision enabling tolerance-guaranteed cutting to eliminate downstream grinding and reduce blank waste.
• Power-off slow-stop function to reduce wire-breakage risk during sudden power outages and maintain production continuity.
• Energy recovery module recovers braking energy from roller reciprocation to reduce operating power consumption.
• Superior diamond-wire thinning capability, suitable for processing ultra-thin sheets.

Product Parameters

• Max. processing size: 160(W)×600(L)×120(H) mm (single station)
• Slice thickness: 0.3–2 mm
• Max. wire speed: 2100 m/min
• Feeding direction: Vertical downward
• Feeding speed: 0.1–9 mm/min
• Wire diameter: 0.07–0.15 mm
• Maximum wire storage capacity: 50 km (0.10 diamond wire)
• Equipment dimensions (approx.): 2800(L)×1600(W)×3200(H) mm
• Equipment weight (approx.): 8 t

Features / Technical specifications

• Model: GC-CQ1660H
• Application: Multi-wire cutting of magnetic materials with diamond wire
• Machine bed: Cast construction for increased rigidity
• Roller structure: Double-cone positioning with servo-motor synchronous direct-drive
• High-speed spindle: Improved rigidity and operational stability
• Processing precision: Ultra-high precision enabling tolerance-guaranteed cutting
• Power-off slow-stop: Reduces wire-breakage risk during power loss
• Energy recovery module: Recovers braking energy to lower power consumption
• Diamond-wire thinning capability: Suitable for ultra-thin sheet processing
• Max. processing size: 160(W)×600(L)×120(H) mm (single station)
• Slice thickness range: 0.3–2 mm
• Max. wire speed: 2100 m/min
• Feeding direction: Vertical downward
• Feeding speed: 0.1–9 mm/min
• Wire diameter: 0.07–0.15 mm
• Maximum wire storage capacity: 50 km (0.10 diamond wire)
• Equipment dimensions (approx.): 2800(L)×1600(W)×3200(H) mm
• Equipment weight (approx.): 8 t
