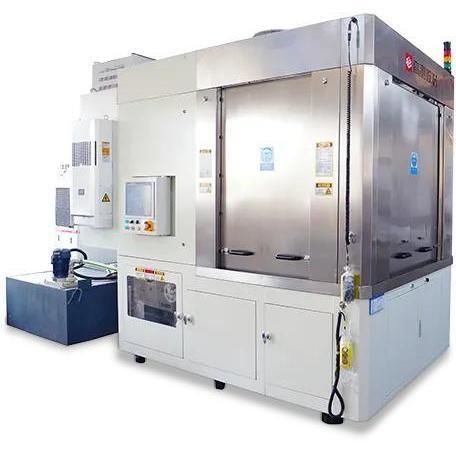

Diamond wire cutting machine GC-CQ16100UH

multi-wirefor metalsheet

Product introduction
This equipment is a multi-wire cutting machine dedicated to magnetic materials using diamond wire. It is designed for high-rigidity spindle operation at high speed and for high single-pass output, making it suitable for processing thick slices and continuous production scenarios.

Main features

• Cast machine bed and core components for structural rigidity; rollers use a double-cone positioning structure with servo motor synchronous direct-drive to enhance spindle rigidity and operational stability at high speed.
• Power-off slow-stop function reduces the risk of wire breakage in the event of sudden power loss, preserving production continuity.
• Equipped with an energy recovery module to capture braking energy from roller reciprocation and reduce operating power consumption.
• Large single-process capacity and high wire storage (up to 50 km with 0.12 mm diamond wire), suitable for thick-sheet processing.

Technical parameters

• Model: GC-CQ16100UH
• Application: Multi-wire cutting of magnetic materials using diamond wire
• Max. processing size (W×L×H): 160×1000×160 mm — Double-station
• Slice thickness: 1–30 mm
• Max. wire speed: 2100 m/min
• Feeding direction: Vertical upward
• Feeding speed: 0.1–9 mm/min
• Wire diameter: 0.12–0.25 mm
• Maximum wire storage capacity: 50 km (0.12 mm diamond wire)
• Equipment dimensions (L×W×H): Approx. 3400×1800×2900 mm
• Equipment weight: Approx. 11 t

Applications

• Processing magnetic material sheets requiring high throughput and thick-slice cutting.
• Suitable for manufacturers of magnetic cores, magnetic assemblies and related industrial components where stable high-speed slicing is needed.
