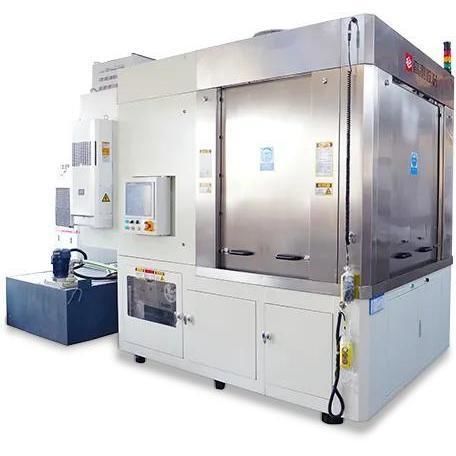

Diamond wire cutting machine GC-CQ1880UH

multi-wirefor metalwafer

Product introduction
This equipment is a specialized multi-wire cutting machine for magnetic materials using diamond wire, designed for industrial production with high rigidity, continuity and energy efficiency.

• Core components such as the machine bed are produced by casting; rollers use a double-cone positioning structure combined with servo motor synchronous direct-drive technology to improve spindle rigidity and stability at high speed.
• Equipped with a power-off slow-stop function to reduce the risk of wire breakage during unexpected power outages and to maintain production continuity.
• Includes an energy recovery module that recovers braking energy from the rollers' reciprocating motion, lowering operational power consumption.
• High diamond-wire thinning capability while providing large single-process output, balancing thin-slice cutting stability and efficiency for thicker slices.

Product parameters
Item — Unit — Parameter
Max. processing size — mm — 180(W)×800(L)×160(H) × Double-Station
Slice thickness — mm — 1–20
Max. wire speed — m/min — 2100
Feeding direction — — Vertical upward
Feeding speed — mm/min — 0.1–9
Wire diameter — mm — 0.10–0.25
Maximum wire storage capacity — km — 50 (0.10 diamond wire)
Equipment dimensions — mm — Approx. 3200(L)×1800(W)×2900(H)
Equipment weight — t — Approx. 10

Technical specifications

• Model: GC-CQ1880UH
• Application: Multi-wire cutting of magnetic materials using diamond wire
• Max. processing size: 180(W)×800(L)×160(H) (Double-Station)
• Slice thickness: 1–20 mm
• Max. wire speed: 2100 m/min
• Feeding direction: Vertical upward
• Feeding speed: 0.1–9 mm/min
• Wire diameter: 0.10–0.25 mm
• Max. wire storage capacity: 50 km (with 0.10 diamond wire)
• Equipment dimensions (L×W×H): Approx. 3200 × 1800 × 2900 mm
• Equipment weight: Approx. 10 t
• Construction: Cast machine bed; double-cone roller positioning; servo motor synchronous direct-drive for rollers
• Safety/continuity: Power-off slow-stop function to reduce wire breakage risk
• Energy: Integrated energy recovery module for braking energy regeneration
• Performance: Strong diamond wire thinning capability with high single-process output for thin and thick slice balance
