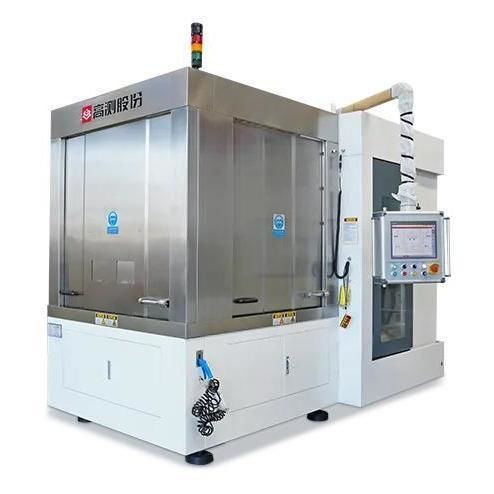

Diamond wire cutting machine GC-CQ1280UM

multi-wirefor metalslab

Product overview

• Specialized multi-wire cutting machine for magnetic materials using diamond wire. Model: GC-CQ1280UM.
• Cast machine bed; rollers with double-cone positioning; servo motor synchronous direct-drive to increase spindle rigidity and stability at high rotational speeds.
• Power-off slow-stop function reduces the risk of wire breakage during sudden power loss to maintain production continuity.
• Small spindle spacing and low cutting wire bow, suitable for tile product cutting; vertical upward feeding; double-station configuration.

Technical parameters
Max. processing size: 160(W)×800(L)×120(H) × Double-Station (mm)
Slice thickness: 1.5–20 mm
Max. wire speed: 1800 m/min
Feeding direction: Vertical upward
Feeding speed: 0.1–9 mm/min
Wire diameter: 0.12–0.25 mm
Max. wire storage capacity: 30 km (0.2 mm diamond wire)
Equipment dimensions (approx.): 2700(L)×1900(W)×2950(H) mm
Equipment weight (approx.): 7 t

Key specifications

• Model: GC-CQ1280UM
• Application: Multi-wire cutting of magnetic materials with diamond wire
• Construction: Cast machine bed; double-cone roller positioning; servo motor synchronous direct-drive
• Safety: Power-off slow-stop function to reduce wire breakage risk
• Processing capacity: Slice thickness 1.5–20 mm; max wire speed 1800 m/min
• Wire: Diameter 0.12–0.25 mm; max storage 30 km (0.2 mm wire)
• Dimensions & weight: Approx. 2700×1900×2950 mm; approx. 7 t
