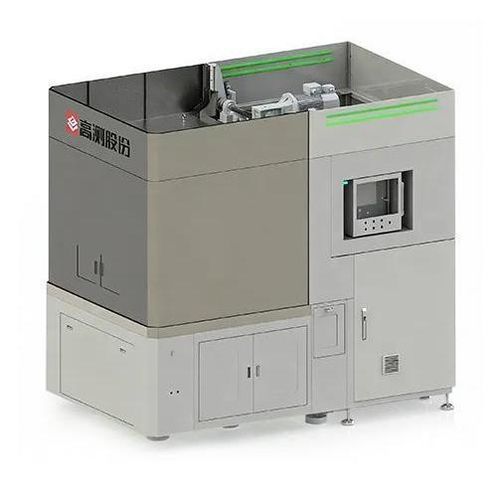

Wire cutting machine GC-CQ1680UM

diamond wiremulti-wirefor metal

Product introduction
This equipment is a multi-wire cutting machine dedicated to magnetic materials using diamond wire. It is designed to combine high single-pass output with stable thin-slice cutting.

• Core components such as the machine bed are produced by casting. Rollers use a double-cone positioning structure paired with a servo motor synchronous direct-drive, significantly improving spindle rigidity and rotational stability at high speeds.
• Equipped with a power-off slow-stop function to reduce the risk of wire breakage during sudden power outages and to help maintain production continuity.
• Strong diamond-wire thinning capability while supporting large per-pass throughput, enabling a balance between thin-slice cutting stability and thick-slice processing efficiency.

Product parameters

• Max. processing size: 160(W)×800(L)×160(H) mm — Double-Station
• Slice thickness: 1–30 mm
• Max. wire speed: 1800 m/min
• Feeding direction: Vertical upward
• Feeding speed: 0.1–9 mm/min
• Wire diameter: 0.12–0.25 mm
• Maximum wire storage capacity: 50 km (with 0.12 mm diamond wire)
• Equipment dimensions (approx.): 2700(L)×1900(W)×2950(H) mm
• Equipment weight (approx.): 7 t

Technical characteristics / Specifications

• Model: GC-CQ1680UM
• Application: Multi-wire cutting of magnetic materials using diamond wire
• Max. processing size: 160(W)×800(L)×160(H) mm — Double-Station
• Slice thickness range: 1–30 mm
• Max. wire speed: 1800 m/min
• Feeding direction: Vertical upward
• Feeding speed: 0.1–9 mm/min
• Wire diameter: 0.12–0.25 mm
• Maximum wire storage capacity: 50 km (0.12 mm diamond wire)
• Dimensions (L×W×H): approx. 2700×1900×2950 mm
• Weight: approx. 7 t
