Pulse width modulation (PWM) module EAs-LED Streifen

Product description

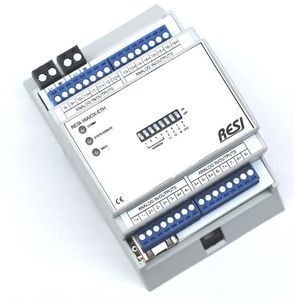

Our EA modules are designed for building automation, industrial automation and infrastructure applications. The modules are available in sizes 4, 8 or 12 TE (depending on the total number of I/O) and are intended for the 45 mm cutout of a standard control cabinet.

Functions & Use

• Versions with integrated RS485 interface (ASCII + MODBUS/RTU Slave) or with Ethernet (ASCII + MODBUS/TCP Server).
• Support for a simple ASCII protocol to connect to media control systems or IoT controllers (e.g. Node-RED, NodeJs, Python).
• Ethernet versions additionally support MODBUS/RTU over Ethernet.
• Wide-range power supply: 12–48 V DC.

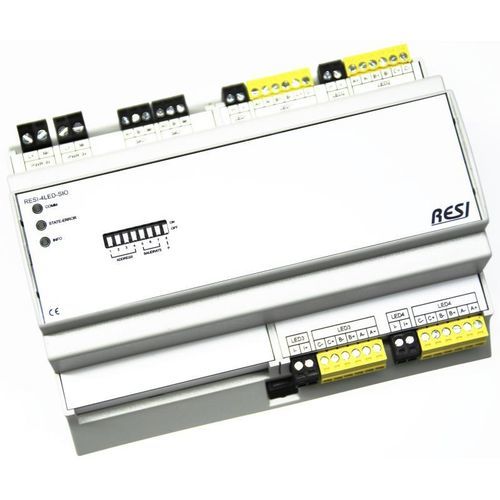

Specific LED module
In this product group there is a specific EA module to drive up to 12 LED strips with 12 PWM outputs. The outputs are divided into four groups; each group has its own power supply, allowing different LED strips to be mixed on a single module. Supported are common-anode LED strips and supply voltages up to 60 V DC.

Configuration
The free RESIConfigurator software is available for parameterisation and testing of the EA modules. Each product is supplied with a complete ASCII command list and a MODBUS register table with detailed explanations.

Product variants (selection)

• EAs interfaces: RS485: ASCII + MODBUS/RTU Slave protocol
• EAs interfaces: Ethernet: ASCII + MODBUS/TCP Server protocol
• EAs-LED strips: 12x LED strips – 4 groups with 3 PWM outputs each

Characteristics / Technical specifications

• Series name: EAs-LED strips
• Article number (reference variant): RESI-4LED-SIO
• Sizes: 4 TE, 8 TE, 12 TE (depending on I/O count)
• Mounting: For 45 mm cutout in standard control cabinet
• Module power supply: 12–48 V DC (wide-range input)
• LED supply: Supports common-anode LED strips up to 60 V DC
• PWM outputs: 12 PWM outputs, divided into 4 groups (each group with separate supply)
• Interfaces/protocols: RS485 (ASCII + MODBUS/RTU Slave), Ethernet (ASCII + MODBUS/TCP Server); Ethernet supports MODBUS/RTU over Ethernet
• Configuration: RESIConfigurator software; supplied ASCII command list and MODBUS register table
• Typical applications: Building automation, industrial automation, infrastructure
