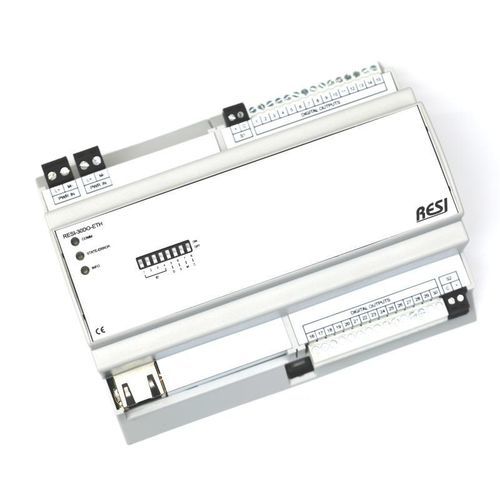

Digital output module EAs-nur

ModbusModbus RTUEthernet

Product overview
The EAs series comprises IO modules designed for building automation, industrial automation and infrastructure projects. Available widths: 4, 8 or 12 TE (depending on total IO count), suitable for standard control cabinets with a 45 mm cut-out.

Interfaces & Protocols
Modules are offered in two main versions: RS485 with MODBUS/RTU (slave) and Ethernet with MODBUS/TCP. All EAs modules also support a simple ASCII protocol for integration with media control systems or IoT controllers (e.g. Node-RED, NodeJs, Python). Ethernet models additionally support MODBUS/RTU over Ethernet.

Configuration
Modules can be configured and tested using the RESIConfigurator software. Each product includes a complete ASCII command list and a MODBUS register table with detailed explanations.

Output module functions

• Digital outputs for DC signals up to ≤ 30 V.
• Groups of outputs with separate power supplies allow combinations such as 12 VDC and 24 VDC outputs on the same module.
• Output modules with up to 700 mA per channel provide extensive diagnostics (thermal overload, short circuit, open wire and overcurrent detection). Outputs are short-circuit proof.
• RESI-Lxxx products: maximum support 350 mA per channel (reduced diagnostics, cost-efficient option).

Available variants (selection)

• EAs interfaces: RS485 — ASCII + MODBUS/RTU (Slave)
• EAs interfaces: Ethernet — ASCII + MODBUS/TCP (Server)

Available output configurations (selection)

• 6xDA (≤ 30 Vdc, ≤ 700 mA)
• 12xDA (≤ 30 Vdc, ≤ 700 mA)
• 24xDA (≤ 30 Vdc, ≤ 700 mA)
• 30xDA (≤ 30 Vdc, ≤ 350 mA)
• 30xDA (≤ 30 Vdc, ≤ 700 mA)
• 60xDA (≤ 30 Vdc, ≤ 350 mA)
• 60xDA (≤ 30 Vdc, ≤ 700 mA)
• 90xDA (≤ 30 Vdc, ≤ 700 mA)

Notes
All modules feature a wide-range power supply of 12–48 VDC.

Technical specifications

• Series: EAs
• Output type: digital outputs (DC)
• Max. output voltage: ≤ 30 Vdc
• Output current per channel: variants up to 350 mA or up to 700 mA
• Diagnostics (models up to 700 mA): thermal overload, short circuit, open wire, overcurrent
• Interfaces: RS485 (MODBUS/RTU, ASCII), Ethernet (MODBUS/TCP, MODBUS/RTU over Ethernet, ASCII)
• Power supply: 12–48 VDC wide range
• Housing/installation size: 4 / 8 / 12 TE, fits 45 mm cut-out standard control cabinet
• Configuration/tools: RESIConfigurator; ASCII command list and MODBUS register table available
