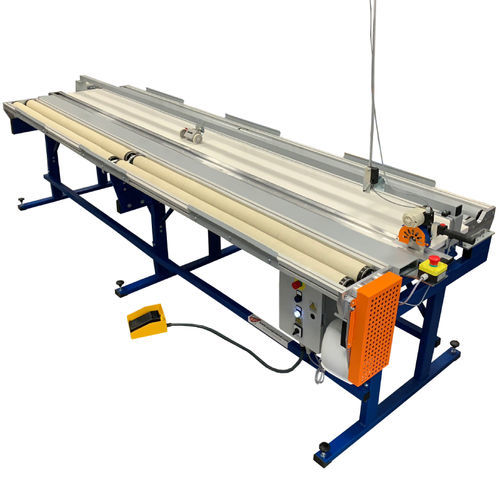

Fabric opening and winding machine PMR-2

Fabric opening and winding machine - PMR-2 - REXEL
Fabric opening and winding machine - PMR-2 - REXEL
Fabric opening and winding machine - PMR-2 - REXEL - image - 2
Fabric opening and winding machine - PMR-2 - REXEL - image - 3
Fabric opening and winding machine - PMR-2 - REXEL - image - 4
Fabric opening and winding machine - PMR-2 - REXEL - image - 5
Add to favorites
Compare this product
Go to the REXEL website for more information

Description

Key features
  • Table designed for rewinding roller blind fabrics from a roll onto a cardboard core; ideal for handling shorter lengths.
  • Rewinding is actuated by a foot pedal; motorized winding rollers ensure even transfer of the material onto the core.
  • Constructed from a bolted steel frame with closed profiles and a 25 mm laminated MDF worktop.
  • Integrated mechanical fabric counter for length measurement.
  • Supplied with manual OT-1/R end cutter; OT-1/A semi-automatic cutter available as an option.


Specifications
  • Maximum fabric roll width: 3400 mm (134")
  • Maximum fabric roll weight: up to 40 kg (88 lbs)
  • Maximum fabric roll diameter: up to 300 mm (12")
  • Power supply: 230 V AC
  • Motor power: 180 W


Characteristics / technical specifications
  • Model: PMR-2
  • Application: rewinding roller blind fabrics from roll to cardboard core (suitable for shorter lengths)
  • Operation: foot pedal actuation for rewinding; motorized winding rollers for uniform transfer
  • Frame: bolted steel frame with closed profiles for rigidity
  • Worktop: 25 mm laminated MDF
  • Counter: integrated mechanical fabric counter
  • Cutting options: OT-1/R manual end cutter supplied; OT-1/A semi-automatic cutter optional
  • Capacity: max width 3400 mm, max weight 40 kg, max diameter 300 mm
  • Electrical data: 230 V AC, motor 180 W
