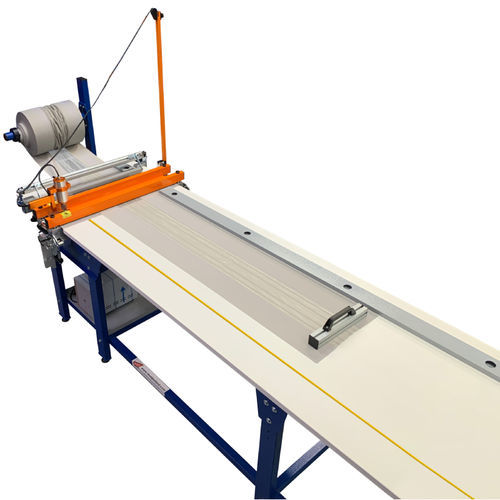

Knife cutting machine TL-1M
for plasticsfor fabricsbench-top

Knife cutting machine - TL-1M - REXEL - for plastics / for fabrics / bench-top
Knife cutting machine - TL-1M - REXEL - for plastics / for fabrics / bench-top
Knife cutting machine - TL-1M - REXEL - for plastics / for fabrics / bench-top - image - 2
Knife cutting machine - TL-1M - REXEL - for plastics / for fabrics / bench-top - image - 3
Knife cutting machine - TL-1M - REXEL - for plastics / for fabrics / bench-top - image - 4
Knife cutting machine - TL-1M - REXEL - for plastics / for fabrics / bench-top - image - 5
Knife cutting machine - TL-1M - REXEL - for plastics / for fabrics / bench-top - image - 6
Knife cutting machine - TL-1M - REXEL - for plastics / for fabrics / bench-top - image - 7
Knife cutting machine - TL-1M - REXEL - for plastics / for fabrics / bench-top - image - 8
Add to favorites
Compare this product
Go to the REXEL website for more information

Characteristics

Technology
knife
Material
for plastics, for fabrics
Configuration
bench-top
Load capacity

40 kg
(88.2 lb)

Description

Key features
  • The table is equipped with a manual ultrasonic knife TTS-400, enabling precise cutting of sun-protection materials, soft thermoplastic materials, and synthetic fabrics. Ultrasonic cutting produces clean edges and prevents fraying of synthetic materials.
  • A double-sided fabric clamp stabilizes the material during cutting for accurate, consistent and safe cuts; the clamp can be locked in the upper position for easier material feeding.
  • The table frame is made of closed steel profiles with a powder-coated finish for long-term corrosion protection.
  • The tabletop is a 25 mm thick laminated white MDF board with all edges covered in PVC.
  • A built-in fabric roll unwinder enables efficient material handling.
  • A fabric retention roller prevents the material from slipping after cutting and maintains material stability.
  • After assembly, the supplied measuring tape must be affixed to the tabletop.


Specifications
  • Overall table length: 4990 mm
  • Table length beyond the cutting line: 4118 mm
  • Tabletop width: 800 mm
  • Cutting width: 600 mm
  • Maximum fabric roll diameter: 1420 mm
  • Maximum roll weight: 40 kg
  • Ultrasonic knife: TTS-400


Manufacturer / Model
REXEL
Model on page: TL-1M.800x5000

Technical specifications
  • Manual ultrasonic knife: TTS-400
  • Cutting width: 600 mm
  • Tabletop thickness/material: 25 mm laminated MDF with PVC-edged sides
  • Tabletop usable width: 800 mm
  • Overall length: 4990 mm (table length beyond cutting line 4118 mm)
  • Max roll diameter: 1420 mm
  • Max roll weight: 40 kg
  • Frame: closed steel profiles, powder-coated
  • Built-in fabric roll unwinder and fabric retention roller included
  • Double-sided fabric clamp lockable in upper position
  • Accessories: measuring tape supplied (to be fixed after assembly)
