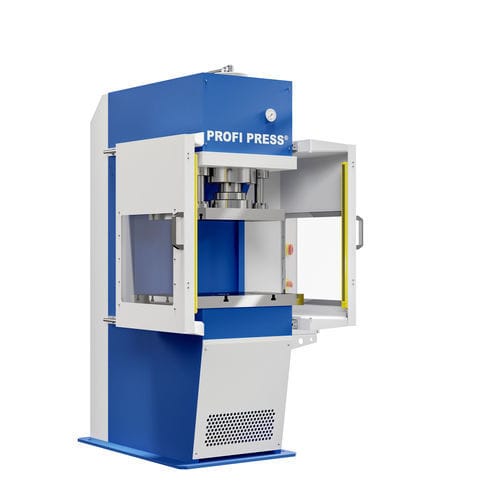

C-frame press PPCM-100

hydraulicmanualstamping

This 100 ton C frame press is suitable for performing work involving deep-drawing, forming and stamping. One of our best-sellers! Designed with an upper- and lower table with DIN-650 T-grooves. The upper table ensures a perfect alignment by means of two cylindrical lateral guides (∅ 50 mm). We produce this 100 ton C frame press with a selector for manual / semi-automatic / automatic work-mode, two speeds, a pressure switch and light guards in the frontal working area of the press. The cylinder stroke is easy to adjust with the end-stroke limit switches. All our C-frame presses are made in Europe and delivered according to the latest CE standards. High quality guaranteed! Equipped with an upper- and lower table with T-grooves (DIN-650); tools can be easily fastened onto the tables Perfect alignment thanks to two lateral guides for the upper table Two lateral protection screens (which can be opened) with level IV safety light guards at the front The cylinder stroke is easy to adjust with the end-stroke switches Manual / semi-automatic / automatic mode Two cylinder speeds Pressure switch and manometer Operation by means of a foot pedal Geometry adapted to your requirements (for example larger tables, a larger vertical light or a larger piston stroke) Higher speeds with a different pump Hydraulic ejector placed in the upper- or lower table (or both) Hydraulic cushion PLC Siemens mod. SIMATIC S7 1200 with 7” touch screen Cooling equipment for the hydraulic group by an air-oil cooling system Mechanical regulation of the cylinder (only available for the 80 and 100 ton C frame press)
