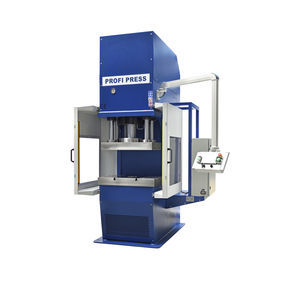

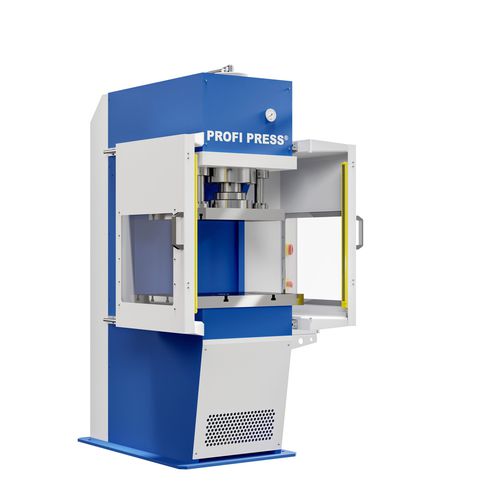

C-frame press PPCM-50
hydraulicmanualstamping

C-frame press
C-frame press
C-frame press
C-frame press
C-frame press
C-frame press
C-frame press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic, manual
Function
stamping, deep drawing, punching
Structure
C-frame
Control
semi-automatic
Other characteristics
with pedal control
Force

50 kN

Stroke

250 mm (10 in)

Table width

300 mm, 450 mm (12 in)

Table length

550 mm, 700 mm (22 in)

Max. pressure

Max.: 32,000,000 Pa (4,641 psi)

Min.: 0 Pa (0 psi)

Working speed

6 mm/s

Return speed

42 mm/s

Approaching speed

32 mm/s

Weight

1,750 kg (3,858 lb)

Overall length

1,290 mm (51 in)

Overall width

1,160 mm (46 in)

Overall height

2,085 mm (82 in)

Description

This 50 ton C frame press is suitable for performing work involving deep-drawing, forming and stamping. Designed with an upper- and lower table with DIN-650 T-grooves. The upper table ensures a perfect alignment by means of two cylindrical lateral guides (∅ 50 mm). We produce this 50 ton C frame press with a selector for manual / semi-automatic / automatic work-mode, two speeds, a pressure switch and light guards in the frontal working area of the press. The cylinder stroke is easy to adjust with the end-stroke switches. All our C-frame presses are made in Europe and delivered according to the latest CE standards. High quality guaranteed! Equipped with an upper- and lower table with T-grooves (DIN-650); tools can be easily fastened onto the tables Perfect alignment thanks to two lateral guides for the upper table Two lateral protection screens (which can be opened) with level IV safety light guards at the front The cylinder stroke is easy to adjust with the end-stroke switches Manual / semi-automatic / automatic mode Two cylinder speeds Pressure switch and manometer Operation by means of a foot pedal Geometry adapted to your requirements (for example larger tables, a larger vertical light or a larger piston stroke) Higher speeds with a different pump Hydraulic ejector placed in the upper- or lower table (or both) Hydraulic cushion PLC Siemens mod. SIMATIC S7 1200 with 7” touch screen Cooling equipment for the hydraulic group by an air-oil cooling system
