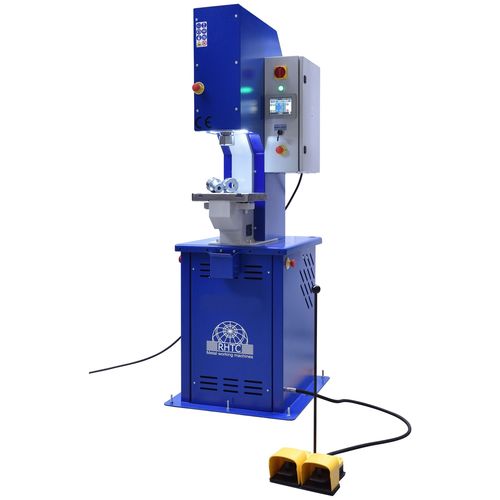

C-frame press PPC-50
hydraulicmanualstamping

C-frame press
C-frame press
C-frame press
C-frame press
C-frame press
C-frame press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic, manual
Function
stamping, punching, cutting
Structure
C-frame
Control
semi-automatic, NC
Other characteristics
electronic
Force

50 tf

Stroke

150 mm
(6 in)

Working speed

Min.: 2 mm/s

Max.: 10 mm/s

Return speed

150 mm/s

Weight

1,400 kg
(3,086 lb)

Overall height

2,100 mm
(83 in)

Description

This 50 ton C-Frame Press is made in Europe. Suitable for cutting, punching and stamping or other metal working jobs. You can regulate the piston stroke with an electronic NC-controller. With this control-system it is possible to set the position of the piston stroke with an accuracy of 0.1 mm. When you need to hold the press in its lowest position under pressure, you easily adjust this holding time from 0 to 2 seconds. Our 50 ton C-Frame Press has two work modes: manual and semi-automatic. Its table is equipped with T-grooves and a central hole (ø 40 mm): waste from punching operations can fall freely through this hole into the collection tray. Adjusting the speed and pressing force can be done by means of the hydraulic adjustment valves. Furthermore, the press is also equipped with a manometer. NC-control to set the piston stroke Selector for manual or semi-automatic operation Flow adjustment valve and pressure control valve Integrated pressure manometer Different tooling can be installed onto the piston – it has a 40 mm hole inside for fixing tools Several stamps and dies Several punch tools for various applications, such as corner cutting notchers, pipe notchers and sheet bending tools.
