Hydraulic press

formingstampinghigh-volume

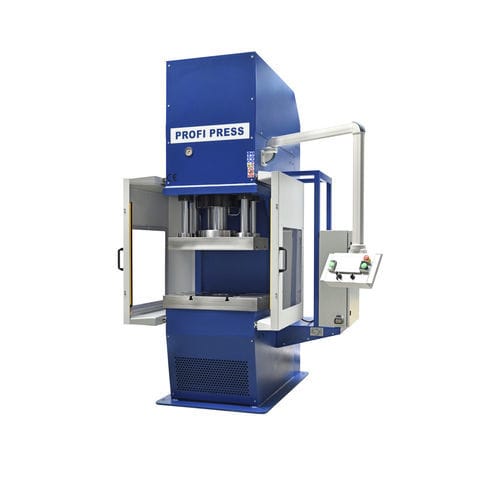

This Hydraulic Cframe Press 50T is designed to carry out tasks involving stamping and forming in medium and high volumes. Also suitable to incorporate in automated production lines. Designed with an upper- and lower table with T-grooves. The upper table ensures a perfect alignment by means of four cylindrical lateral guides. Equipped with a main cylinder and two lateral cylinders to achieve the high speeds. The hydraulic unit is standard provided with an air-oil cooling system. We produce this Hydraulic Cframe Press 50T with a control panel featuring a Siemens PLC with touch screen. This control system permits programming the power, the cylinder stroke, speeds and pressure-time. It has a storage capacity to save up to 100 different working cycles. Features Equipped with an upper- and lower table with T-grooves (DIN-650); tools can be easily fastened onto the tables Perfect alignment thanks to lateral guides for the upper table One main cylinder and two lateral cylinders for high speeds Two lateral protection screens (which can be opened, sliding to the back) with level IV safety light guards at the front Siemens PLC control panel to program the power, cylinder stroke & pressure time, to select the work mode & cylinder speeds and with a capacity to save up to 100 working cycles. Operation by means of a foot pedal Optional accessories Geometry adapted to your requirements (for example larger tables, a larger vertical light or a larger piston stroke for this hydraulic Cframe Press 50T) Software adapted to your requirements Hydraulic ejector Hydraulic cushion Adaptations to robotics
