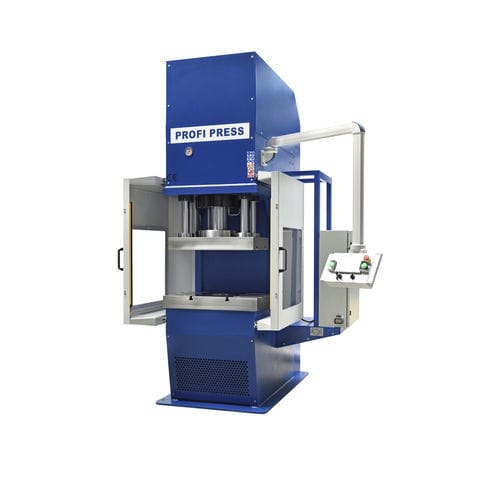

C-frame press PPCF-150

hydraulicstampingdeep drawing

This 150 ton high speed C-frame press is designed to carry out tasks involving deep-drawing, stamping and forming in medium and high volumes. Also suitable to incorporate in automated production lines. Designed with an upper- and lower table with T-grooves. The upper table ensures a perfect alignment by means of four cylindrical lateral guides (∅ 50 mm). Equipped with a main cylinder and two lateral cylinders to achieve the high speeds. The hydraulic unit is standard provided with an air-oil cooling system. We produce this 150 ton hydraulic C-frame press with a control panel featuring a Siemens PLC with touch screen. This control system permits programming the power, the cylinder stroke and pressure-time. It has a storage capacity to save up to 300 different working cycles. All our C-frame presses are made in Europe and delivered according to the latest CE standards. High quality guaranteed! Equipped with an upper- and lower table with T-grooves (DIN-650); tools can be easily fastened onto the tables Perfect alignment thanks to four lateral guides for the upper table One main cylinder and two lateral cylinders for high speeds Two lateral protection screens (which can be opened) with level IV safety light guards at the front Siemens PLC control panel to program the power, cylinder stroke & pressure time, to select the work mode & cylinder speeds and with a capacity to save up to 300 working cycles. Operation by means of a foot pedal Geometry adapted to your requirements (for example larger tables or a larger piston stroke for this 150 ton hydraulic C-frame press) Hydraulic ejector Hydraulic cushion Adaptations to robotics Hydraulic connections to peripheral systems
