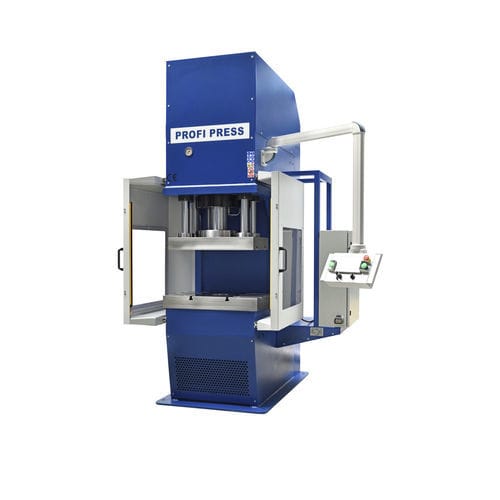

C-frame press PPCU-HS-100

hydraulicstampingdrawing

This hydraulic C-frame press has a capacity of 100 tons with high approach- and return speeds. Suitable to carry out tasks involving pressing, stamping and forming in medium and high volumes. And you are also able to incorporate these presses in automated production lines. We design this hydraulic C-frame press with an upper- and lower table with T-grooves. The upper table ensures a perfect alignment by means of four cylindrical lateral guides. Equipped with a main cylinder and two lateral cylinders to achieve the high speeds. The hydraulic unit is standard provided with an air-oil cooling system as well. This high speed C-frame press has a control panel featuring a Siemens PLC with touch screen. The control system permits programming the power, the cylinder stroke, speeds and pressure-time. It has a storage capacity to save up to 100 different working cycles. Our C-frame presses are made in Europe and delivered according to the latest CE standards. High quality guaranteed! Features Made out of S355JR steel Equipped with an upper- and lower table with T-grooves (DIN-650); tools can be easily fastened onto the tables Perfect alignment thanks to four lateral guides for the upper table One main cylinder and two lateral cylinders for high speeds Two lateral protection screens (which can be opened, sliding to the back) with level IV safety light guards at the front Siemens control panel to program the power, speeds, cylinder stroke & pressure time, to select the work mode and with a capacity to save up to 100 working cycles Operation by means of a foot pedal
