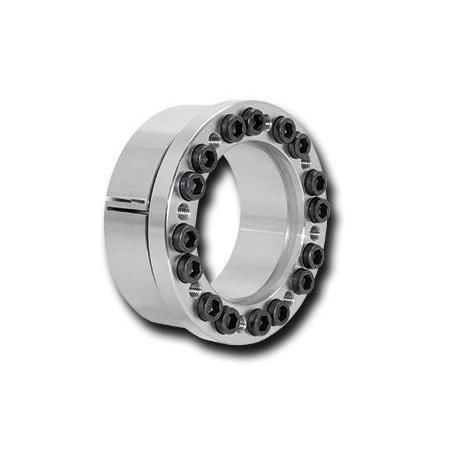

Mechanical clamping element RLK 136 TC

shaftmultiplehigh-accuracy

Product overview
Cone clamping elements RLK 136 TC are internal cone clamping connections with a double-slot design for backlash-free fastening and precise centring of hubs on solid shafts. They provide a fixed backstop point to prevent axial displacement during the clamping process and are suitable for repeated assembly operations.

Features

• Centres hub to shaft with high centring accuracy due to double-slot design.
• Can be assembled and disassembled multiple times.
• Very high transmissible torque across the size range.
• Short axial width (compact axial design).
• No axial displacement between hub and shaft during clamping thanks to fixed backstop point.
• High machining precision.
• Transmissible torque range: 6 700 Nm up to 994 500 Nm (depending on size).
• For shaft diameters between 70 mm and 600 mm.

Webshop - available sizes / selection (product name; article number; weight; price per piece for 1 pc)
RLK 136 TC-70 x 110; Article number: 4204-070601-TC0000; Weight: 2,5; Price (1 pc): 158,70 €
RLK 136 TC-75 x 115; Article number: 4204-075601-TC0000; Weight: 2,6; Price (1 pc): 272,00 €
RLK 136 TC-90 x 130; Article number: 4204-090601-TC0000; Weight: 3,0; Price (1 pc): 185,10 €
RLK 136 TC-100 x 150; Article number: 4204-100601-TC0000; Weight: 4,7; Price (1 pc): 224,10 €
RLK 136 TC-110 x 160; Article number: 4204-110601-TC0000; Weight: 5,1; Price (1 pc): 242,00 €
RLK 136 TC-120 x 170; Article number: 4204-120601-TC0000; Weight: 5,4; Price (1 pc): 329,20 €
RLK 136 TC-130 x 185; Article number: 4204-130601-TC0000; Weight: 7,5; Price (1 pc): 362,90 €
RLK 136 TC-140 x 195; Article number: 4204-140601-TC0000; Weight: 8,8; Price (1 pc): 395,20 €
RLK 136 TC-150 x 205; Article number: 4204-150601-TC0000; Weight: 8,6; Price (1 pc): 423,50 €
RLK 136 TC-160 x 215; Article number: 4204-160601-TC0000; Weight: 8,9; Price (1 pc): 463,60 €
RLK 136 TC-170 x 230; Article number: 4204-170601-TC0000; Weight: 12,7; Price (1 pc): 504,00 €
RLK 136 TC-180 x 240; Article number: 4204-180601-TC0000; Weight: 13,3; Price (1 pc): 517,00 €
RLK 136 TC-190 x 250; Article number: 4204-190601-TC0000; Weight: 13,9; Price (1 pc): 624,00 €
RLK 136 TC-200 x 260; Article number: 4204-200601-TC0000; Weight: 14,6; Price (1 pc): 808,00 €
RLK 136 TC-220 x 285; Article number: 4204-220601-TC0000; Weight: 17,8; Price (1 pc): 928,00 €
RLK 136 TC-240 x 305; Article number: 4204-240601-TC0000; Weight: 19,2; Price (1 pc): 988,00 €
RLK 136 TC-260 x 325; Article number: 4204-260601-TC0000; Weight: 19,5; Price (1 pc): 1.107,00 €
RLK 136 TC-280 x 355; Article number: 4204-280601-TC0000; Weight: 19,7; Price (1 pc): 1.170,00 €
RLK 136 TC-300 x 375; Article number: 4204-300601-TC0000; Weight: 30,6; Price (1 pc): 1.330,00 €
RLK 136 TC-320 x 405; Article number: 4204-320601-TC0000; Weight: 42,7; Price (1 pc): 1.412,00 €
RLK 136 TC-340 x 425; Article number: 4204-340601-TC0000; Weight: 44,9; Price (1 pc): 1.553,00 €
RLK 136 TC-360 x 445; Article number: 4204-360601-TC0000; Weight: 52,4; Price (1 pc): 1.955,00 €
RLK 136 TC-380 x 465; Article number: 4204-380601-TC0000; Weight: 54,0; Price (1 pc): 2.258,00 €
RLK 136 TC-400 x 485; Article number: 4204-400601-TC0000; Weight: 56,2; Price (1 pc): 2.600,00 €
RLK 136 TC-420 x 505; Article number: 4204-420601-TC0000; Weight: 59,2; Price (1 pc): 2.782,00 €
RLK 136 TC-440 x 525; Article number: 4204-440601-TC0000; Weight: 70,6; Price (1 pc): 3.227,00 €
RLK 136 TC-460 x 545; Article number: 4204-460601-TC0000; Weight: 71,2; Price (1 pc): 3.449,00 €
RLK 136 TC-480 x 565; Article number: 4204-480601-TC0000; Weight: 75,1; Price (1 pc): 3.832,00 €
RLK 136 TC-500 x 585; Article number: 4204-500601-TC0000; Weight: 79,9; Price (1 pc): 4.235,00 €
RLK 136 TC-520 x 605; Article number: 4204-520601-TC0000; Weight: 80,5; Price (1 pc): 4.959,00 €
RLK 136 TC-540 x 625; Article number: 4204-540601-TC0000; Weight: 82,8; Price (1 pc): 5.728,00 €
RLK 136 TC-560 x 645; Article number: 4204-560601-TC0000; Weight: 85,7; Price (1 pc): 6.453,00 €
RLK 136 TC-580 x 665; Article number: 4204-580601-TC0000; Weight: 89,0; Price (1 pc): 7.058,00 €
RLK 136 TC-600 x 685; Article number: 4204-600601-TC0000; Weight: 91,3; Price (1 pc): 7.662,00 €

Documents
Datasheet and installation instructions (PDF) and 3D-CAD models are available for RLK 136 TC; see product documents on the webshop.

Technical characteristics / specifications

• Model: RLK 136 TC.
• Function: Internal cone clamping element to centre hub to shaft and provide backlash-free fastening.
• Design feature: Double-slot for high centring accuracy; fixed backstop point to prevent axial displacement during clamping.
• Assembly: Can be assembled multiple times.
• Transmissible torque: 6 700 Nm up to 994 500 Nm (depending on size).
• Shaft diameters supported: 70 mm up to 600 mm.
• Axial width: short/compact design (varies by size).
• Machining quality: high precision.
• Available sizes & article numbers: see webshop selection above.
