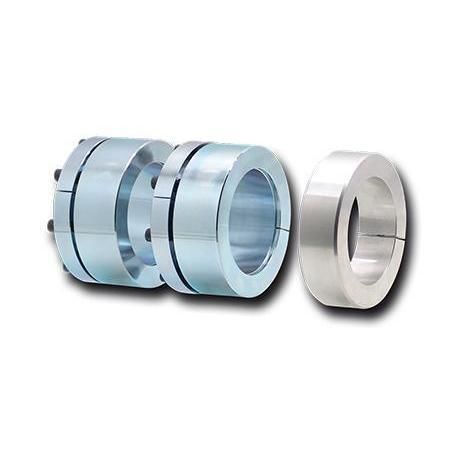

Mechanical clamping system RTM 134 series

mecanical clampshaftshaft-hub

Overview
For mounting and centring complete torque motors on solid or hollow machine shafts. Provides a mechanical connection and precise centring between rotor and machine shaft. Axial and radial support is provided by an additional centring ring.

Features

• Mechanical connection and centring between rotor and machine shaft; support by additional centring ring
• Backlash-free, torsion‑proof transmission of torque generated by the torque motor
• High running accuracy (low true runout)
• Optimized contact pressure to prevent deformation of hollow rotor and machine shafts
• Taper collet galvanized and blue‑chromed to reduce fretting corrosion
• Removable cone clamping elements, serviceable after long operation
• Cone clamping elements can be mounted from the B‑side of the torque motor

Product information

• Datasheet RTM 134.X (PDF available)
• Catalogue: Shaft‑Hub Connections (PDF available)
• Available versions: RTM 134.1 and RTM 134.2

Technical characteristics / specifications

• Application: mounting and centring complete torque motors on solid or hollow shafts
• Function: mechanical connection and precise centring between rotor and shaft
• Support: additional centring ring for axial and radial support
• Torque transmission: backlash‑free, torsion‑proof
• Running accuracy: high true running accuracy
• Contact pressure: configured to avoid deformation of hollow rotor and machine shafts
• Surface treatment: taper collet galvanized and blue‑chromed (anti‑fretting)
• Cone clamping elements: removable; mountable from B‑side; serviceable after extended operation
