Mechanical clamping element RLK 404 TC light
shaftlightself-centering

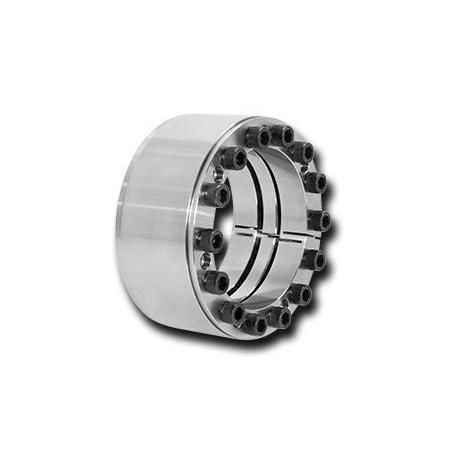

Mechanical clamping element - RLK 404 TC light - RINGSPANN - shaft / light / self-centering
Mechanical clamping element - RLK 404 TC light - RINGSPANN - shaft / light / self-centering
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Type
mechanical
Applications
shaft
Other characteristics
centering, self-centering, high-performance, light
Clamping force

Min.: 120 kN

Max.: 2,400 kN

Description

Product overview
  • Internal cone clamping element that centres the hub to the shaft for applications with low contact pressure
  • Double slot design for high centering accuracy
  • Can be assembled multiple times without axial displacement during clamping
  • Highest machining quality
  • Transmissible torque range: 10,700 Nm – 722,000 Nm
  • Suitable for shaft diameters: 100 mm – 600 mm


Available documents / models
  • Datasheet RLK 404 TC light (PDF)
  • 3D CAD model


Technical specifications
  • Type: internal cone clamping element
  • Model: RLK 404 TC light
  • Application range: low contact pressure
  • Centering: centres the hub to the shaft
  • Slot design: double slot for enhanced centering accuracy
  • Reusability: multiple assemblies possible without axial displacement
  • Machining quality: highest
  • Transmissible torque: 10,700 Nm – 722,000 Nm
  • Shaft diameter range: 100 mm – 600 mm
  • Documentation: datasheet and 3D CAD model available
