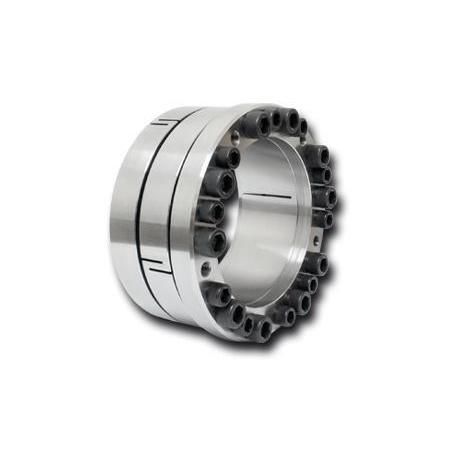

Mechanical clamping element RLK 235 TC

shaftshaft-hubmultiple

Product overview
Cone clamping elements RLK 235 TC are internal cone clamping elements designed to centre the hub to the shaft with high centering accuracy and provide backlash-free fastening. Available in multiple sizes for shaft diameters from 70 mm to 600 mm and covering a transmissible torque range of approx. 8 510 Nm to 1 049 600 Nm.

Features

• Centers hub to shaft; double-slot design for high centering accuracy.
• Can be assembled multiple times without axial displacement.
• High transmissible torque across available sizes.
• No axial displacement between hub and shaft during clamping procedure.
• High machining quality.
• Transmissible torque: approx. 8 510 Nm – 1 049 600 Nm.
• Shaft diameter range: 70 mm – 600 mm.

Documents (available for this product)
Datasheet RLK 235 TC
Installation Instructions 235 TC
Catalogue Shaft-Hub-Connections

Webshop - Available sizes (excerpt)
Product name | Article number | Weight [kg] | Price (EUR ex VAT)
RLK 235 TC-70 x 115 | 4204-070501-TC0000 | 3,62 | 299,90
RLK 235 TC-80 x 125 | 4204-080501-TC0000 | 4,02 | 308,00
RLK 235 TC-90 x 135 | 4204-090501-TC0000 | 4,44 | 330,80
RLK 235 TC-100 x 150 | 4204-100501-TC0000 | 6,02 | 393,30
RLK 235 TC-110 x 160 | 4204-110501-TC0000 | 6,46 | 414,60

Usage notes
Designed for high-precision centring of hubs on shafts where reliable torque transmission and elimination of axial displacement during clamping are critical. Select the appropriate size based on shaft diameter and required transmissible torque. Follow the supplied installation instructions for correct assembly.

Technical specifications

• Model: RLK 235 TC
• Function: internal cone clamping element that centers the hub to the shaft
• Shaft diameter range: 70 mm – 600 mm
• Transmissible torque range: approx. 8 510 Nm – 1 049 600 Nm
• Design: double-slot for high centering accuracy
• Assembly: can be assembled multiple times without axial displacement
• Material/quality: high machining quality
• Available sizes: multiple (examples: 70 x 115 up to 600 x 685 as offered in webshop)
