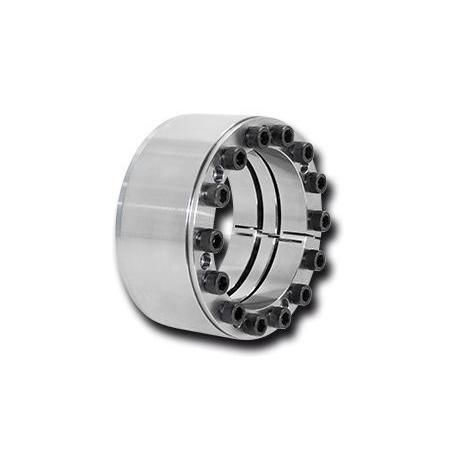

Mechanical clamping element RLK 404 TC

shaftmultiplehigh-accuracy

Overview
Centers the hub to the shaft. Premium quality with double slot.

Features

• Centers the hub to the shaft. Double slot for high centering accuracy
• Can be assembled multiple times
• High transmissible torque
• No axial displacement between hub and shaft during clamping procedure
• Highest machining quality
• Transmissible torque of 18 500 Nm up to 1 206 000 Nm
• For shaft diameters between 100 mm and 600 mm

Available documents (referenced on product page)

• Datasheet RLK 404 TC
• Installation instructions RLK 404 and RLK 404 TC
• 3D CAD model

Webshop - Available sizes and prices (price per piece, currency EUR)
Size | Article number | Weight [kg] | Price (€/pcs)
RLK 404 TC-100 x 145 | 4205-100401-TC0000 | 4,1 kg | 234,10 €
RLK 404 TC-110 x 155 | 4205-110401-TC0000 | 4,5 kg | 250,10 €
RLK 404 TC-120 x 165 | 4205-120401-TC0000 | 5,0 kg | 323,90 €
RLK 404 TC-130 x 180 | 4205-130401-TC0000 | 6,6 kg | 389,60 €
RLK 404 TC-140 x 190 | 4205-140401-TC0000 | 7,1 kg | 411,40 €
RLK 404 TC-150 x 200 | 4205-150401-TC0000 | 7,5 kg | 443,70 €
RLK 404 TC-160 x 210 | 4205-160401-TC0000 | 7,8 kg | 504,00 €
RLK 404 TC-170 x 225 | 4205-170401-TC0000 | 10,8 kg | 565,00 €
RLK 404 TC-180 x 235 | 4205-180401-TC0000 | 11,3 kg | 646,00 €
RLK 404 TC-190 x 250 | 4205-190401-TC0000 | 14,8 kg | 705,00 €
RLK 404 TC-200 x 260 | 4205-200401-TC0000 | 15,7 kg | 786,00 €
RLK 404 TC-220 x 285 | 4205-220401-TC0000 | 19,9 kg | 868,00 €
RLK 404 TC-240 x 305 | 4205-240401-TC0000 | 21,5 kg | 988,00 €
RLK 404 TC-260 x 325 | 4205-260401-TC0000 | 22,8 kg | 1.058,00 €
RLK 404 TC-280 x 355 | 4205-280401-TC0000 | 29,0 kg | 1.150,00 €
RLK 404 TC-300 x 375 | 4205-300401-TC0000 | 31,2 kg | 1.291,00 €
RLK 404 TC-320 x 405 | 4205-320401-TC0000 | 45,9 kg | 1.517,00 €
RLK 404 TC-340 x 425 | 4205-340401-TC0000 | 48,3 kg | 1.856,00 €
RLK 404 TC-360 x 455 | 4205-360401-TC0000 | 67,9 kg | 2.098,00 €
RLK 404 TC-380 x 475 | 4205-380401-TC0000 | 71,4 kg | 2.420,00 €
RLK 404 TC-400 x 495 | 4205-400401-TC0000 | 74,5 kg | 2.763,00 €
RLK 404 TC-420 x 515 | 4205-420401-TC0000 | 77,8 kg | 3.066,00 €
RLK 404 TC-440 x 535 | 4205-440401-TC0000 | 81,4 kg | 3.367,00 €
RLK 404 TC-460 x 555 | 4205-460401-TC0000 | 84,1 kg | 3.792,00 €
RLK 404 TC-480 x 575 | 4205-480401-TC0000 | 88,0 kg | 4.235,00 €
RLK 404 TC-500 x 595 | 4205-500401-TC0000 | 91,6 kg | 4.616,00 €
RLK 404 TC-520 x 615 | 4205-520401-TC0000 | 94,1 kg | 5.450,00 €
RLK 404 TC-540 x 635 | 4205-540401-TC0000 | 97,5 kg | 6.270,00 €
RLK 404 TC-560 x 655 | 4205-560401-TC0000 | 100,7 kg | 6.493,00 €
RLK 404 TC-580 x 675 | 4205-580401-TC0000 | 104,2 kg | 7.058,00 €
RLK 404 TC-600 x 695 | 4205-600401-TC0000 | 107,6 kg | 7.662,00 €

Technical characteristics / specifications

• Model: RLK 404 TC
• Function: centres the hub to the shaft (double slot for high centering accuracy)
• Assembly: can be assembled multiple times, no axial displacement during clamping
• Machining quality: highest machining quality
• Transmissible torque: 18 500 Nm up to 1 206 000 Nm
• Shaft diameter range covered by product variants: 100 mm to 600 mm (sizes shown: 100 x 145 up to 600 x 695)
• Weight range (per variant): approx. 4,1 kg to 107,6 kg
• Price range (per piece, excl. VAT): approx. 234,10 € to 7.662,00 € (webshop entries)
• Delivery time (webshop): On request
