Mechanical clamping system RTM 608 seriesshaftshaft-hubself-centering
Add to favorites
Compare this product
Characteristics
- Type
- mechanical
- Applications
- shaft, shaft-hub
- Other characteristics
- self-centering, removable, high-accuracy, no-backlash
Description
Product overview

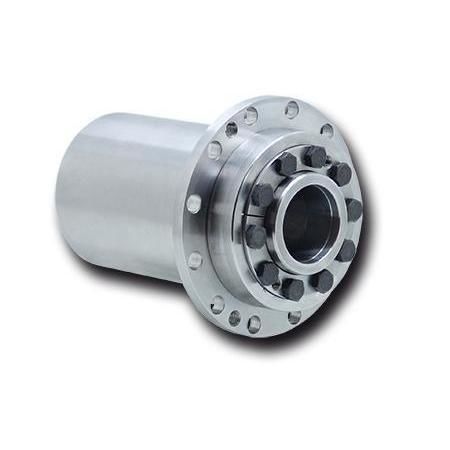

Clamping systems RTM 608.1 and RTM 608.2 for mounting and centring complete torque motors on solid shafts or hollow shafts.
Features
Product information
Characteristics / technical specifications
Clamping systems RTM 608.1 and RTM 608.2 for mounting and centring complete torque motors on solid shafts or hollow shafts.
Features
- Provides a mechanical connection, support and centring between rotor and machine shaft
- Backlash-free, torsion-proof transmission of torque generated by the torque motor
- High true running accuracy
- Cost-effective clamping solution for solid shafts
- Easily removable cone clamping element, even after long periods of operation
Product information
- Datasheet RTM 608.X (RTM 608.1 and RTM 608.2)
- Installation instructions RTM 608
- Catalogue: Shaft–hub connections
Characteristics / technical specifications
- Model series: RTM 608 series (RTM 608.1 and RTM 608.2)
- Application: Mounting and centring complete torque motors on solid or hollow shafts
- Clamping element: Cone clamping element, easily removable
- Torque transmission: Backlash-free, torsion-proof
- Accuracy: High true running accuracy
- Shaft suitability: Designed for cost-effective clamping on solid shafts
- Documents available: Datasheet, installation instructions, catalogue
