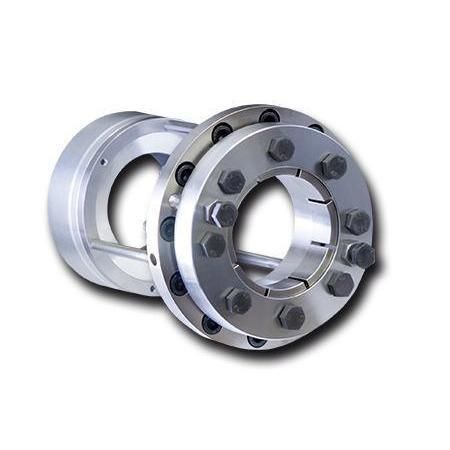

Mechanical clamping system RTM 607

shaftfor tubescentering

Product
Clamping system RTM 607 for SIEMENS complete torque motors 1FW3 — for mounting and centring complete torque motors on shafts or hollow shafts.

Features

• Provides a mechanical connection, support and centring between rotor and machine shaft
• Backlash-free, torsion-proof transmission of torque generated by the torque motor
• High true running accuracy
• Optimally configured contact pressure prevents undesirable deformation of hollow machine shafts
• Taper collet chemically nickel-coated to prevent fretting corrosion
• Easily removable cone clamping element, even after long periods of operation
• Centring bush can be mounted from the B-side of the torque motor

Product information

• Datasheet RTM 607
• Installation Instructions RTM 607
• Catalogue Shaft-Hub-Connections

Characteristics / technical specifications

• Model compatibility: for SIEMENS complete torque motors 1FW3
• Function: mounting and centring of complete torque motors on shafts or hollow shafts
• Torque transmission: backlash-free, torsion-proof
• Running accuracy: high true running accuracy
• Contact design: optimally configured contact pressure to protect hollow shafts from deformation
• Materials / coatings: taper collet chemically nickel-coated to prevent fretting corrosion
• Maintenance / serviceability: cone clamping element easily removable after long operation
• Installation feature: centring bush can be mounted from B-side of the torque motor
