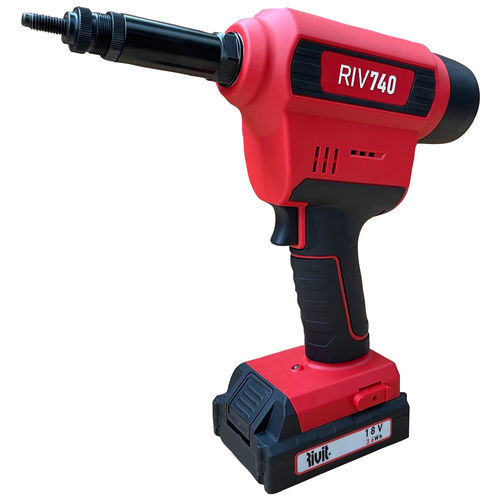

Brushless riveter RIV740

battery-poweredfor threaded insertshoused

Battery tool equipped d with a powerful and reliable brushless motor and a long-life battery, the RIV740 makes of easyness and reliability its strong points, offering the customer a value-added solution covering a wide range of applications, for rivet nuts from M3 to M12 mm.

• Tie rod holder head manually adjustable stroke.
• Touch panel selection/adjustment of functions (Stroke adjustment, Counter, Manual and automatic setting).
• Cone made of steel for greater strength and durability.
• Retractable hook for balancer.
• Led light indicates the operation of the tool.
• Transparent container for nails easily removable.
• Start button robust and well integrated in the structure.
• Ergonomic handle made of soft rubber.
• Light indicator to light the application area.
• Battery led light indicating the charge level.

Composed of:

• kit M6 mounted
• 1 kit M3, M4, M5, M8, M10, M12
• 2 batteries
• 1 charger
• 1 wrench 12-17-22-23.5-26
• 1 belt hook

Application
Light carpentry, mechanical industry, automotive. (Cylindrical open rivet nuts)
Tanks, airtight boxes, tubs. (Cylindrical blind rivet nuts)
Mechanics of the food sector. (Hexagonal, Half-Hexagonal rivet nuts)
Plastic, vitronite, composites, fiberglass. (Jackriv, Tubriv rivet nuts)

Number of rivet nuts placed with one charge:
(estimated figure with 100% charged battery at room temperature of 25°C)
M3 Aluminium: 1500/1600 - Steel: 1400/1500
M4 Aluminium: 1400/1500 - Steel: 1300/1400
M5 Aluminium: 1300/1400 - Steel: 1200/1300
M6 Aluminium: 1200/1300 - Steel: 1100/1200
M8 Aluminium: 1100/1200 - Steel: 1000/1100
M10 Aluminium: 1000/1100 - Steel: 900/1000
M12 Aluminium: 900/1000 - Steel: 800/900
