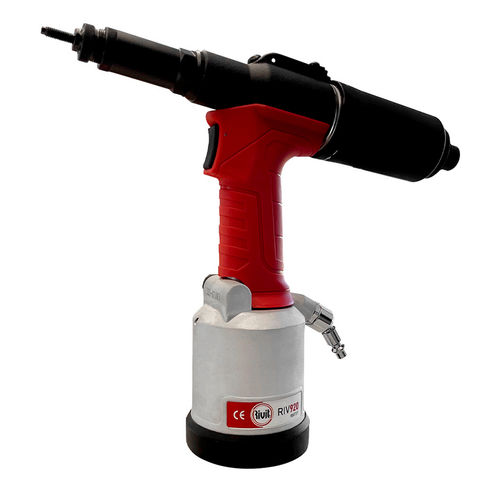

Hydro-pneumatic riveter RIV920

for nutcompactwith ejection system

Description
The hydro-pneumatic RIV920 is a compact tool designed to install RIVSERT female rivet nuts (M3–M8) and RIVBOLT male rivet nuts (M3–M8). Weighing only 1.6 kg, it combines compact dimensions with user-oriented ergonomics. Optimisations to the air motor improve installation and removal speed. Stroke adjustment and a manually adjustable tie-rod head provide stable, repeatable applications for industrial assembly lines and maintenance operations.

Main features

• Stroke adjustment for stable and repeatable applications
• Manually adjustable tie-rod holder head
• Steel cone for increased strength and durability
• Robust start button integrated into the structure
• Ergonomic handle for improved usability
• Protective anti-slip rubber base for the air body
• Adjustable air connection for flexible setup
• Quick-release button for emergency rivet nut ejection
• Adjustment ring for stroke fine-tuning
• Dedicated hole for balancer hook

Composed of

• 1 hydropneumatic tool with M6 kit mounted
• 1 kit M3, M4, M5, M8
• 1 wrench 12-17-22-23.5-26
• 1 ring for balancer
• 1 oil syringe

Applications

• Automotive assembly, general mechanical industry, structural sheet metal (Rivsert cylindrical open)
• Tanks, sealed enclosures, tubs (Rivsert cylindrical blind)
• Food industry mechanics (Rivsert hexagonal, half-hexagonal)
• Metal fabrication, electronics, automotive (Rivbolt)

Packaging
New lightweight cardboard packaging: easy to handle, versatile and environmentally friendlier. Suitable for professional and occasional users.

Technical specifications

• Brand: Rivit
• Air working pressure (bar): 6.0
• Air pressure min/max (bar): 5/7
• Max stroke (mm): 8.0
• Tensile force at 6 bar (N): 20,700
• Motor speed (spin on) (rpm): 3,500
• Motor speed (spin off) (rpm): 3,200
• Weight without kit (kg): 1.6
• Noise level dB(A): < 75.0
