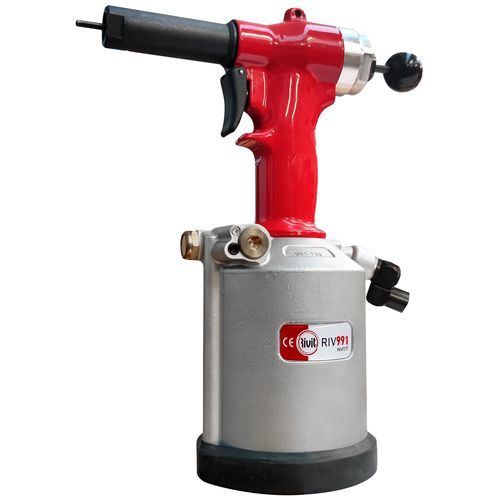

Hydro-pneumatic riveter RIV991

for threaded inserts

Description
The hydropneumatic hexcutter RIV991 is designed to form hexagonal holes for hexagonal Rivsert rivet nuts from M5 to M12. A round-to-hex conversion system, using a special punch and die located at the front of the head, transforms a round hole into a hexagonal one, allowing installation of hexagonal rivet nuts on already folded profiles and metal boxes. The tool is supplied in a plastic case without punches and dies; order the appropriate punch and die separately according to the fastener to be installed. Spare parts, accessories and kits are referenced in the tool manual dated 18/03/2016.

Key features

• Hydropneumatic operation
• Round-to-hex conversion via special front punch and die
• Compatible with hexagonal Rivsert rivet nuts M5 to M12
• Supplied in a plastic case without punches and dies (punches and dies ordered separately)

Technical specifications

• Brand: Rivit
• Air working pressure (bar): 6.0
• Min/max air pressure (bar): 5 - 7
• Air consumption per cycle at 6 bar (l): 2.5
• Stroke (mm): 12.0
• Tensile stress at 6 bar (N): 21000
• Weight without kit (kg): 2.4
• Vibrations (m/s²): < 2.5
• Noise level dB(A): < 80.0
