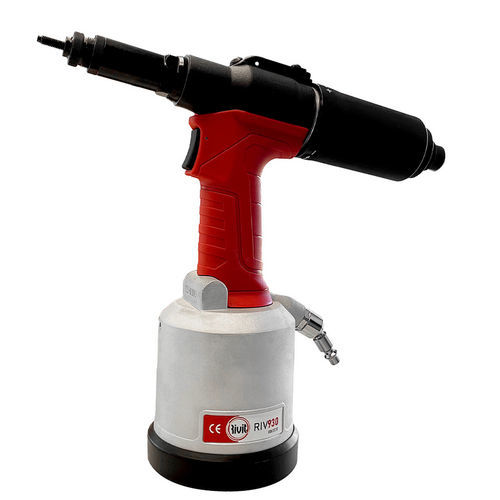

Hydro-pneumatic riveter RIV930

pneumatically-actuatedair-drivenfor inserts

Description
The hydro-pneumatic RIV930 tool is designed to install RIVSERT female rivet nuts M3–M12 and RIVBOLT male rivet nuts M4–M8. It provides increased power and an optimised air motor to accelerate screwing and unscrewing operations. Stroke adjustment ensures stable, repeatable installations for professional, continuous use. Tie-rod holder head is manually adjustable. The cone is made of steel for enhanced strength and durability. Robust start button integrated into the tool body. Ergonomic handle for improved usability. Protective anti-slip rubber base for the air body. Adjustable air inlet and quick-release button for emergency ejection of the rivet nut. Adjustment ring for stroke and a dedicated hole for a balancer hook.

Composed of

• 1 hydropneumatic tool with kit M6 mounted
• 1 kit M3, M4, M5, M8, M10, M12
• 1 wrench 12-17-22-23.5-26
• 1 ring for balancer
• 1 oil syringe

Applications

• Automotive, mechanical industry, metalwork (Rivsert cylindrical open)
• Tanks, airtight enclosures, tubs (Rivsert cylindrical blind)
• Food-industry mechanics (Rivsert hexagonal, half-hexagonal)
• Metal fabrication, mechanical industry, electronics, automotive (Rivbolt)

Packaging
New cardboard packaging that is lightweight, easy to handle, versatile and environmentally friendly. Suitable for professional and DIY needs.

Technical specifications

• Brand: Rivit
• air working pressure (bar): 6.0
• min/max air pressure (bar): 5/7
• max stroke (mm): 8.0
• tensile stress at 6 bar (N): 30600
• motor speed spin on (rpm): 3500.0
• motor speed spin off (rpm): 3200.0
• weight without kit (kg): 1.9
• noise level dB(A): < 75.0
