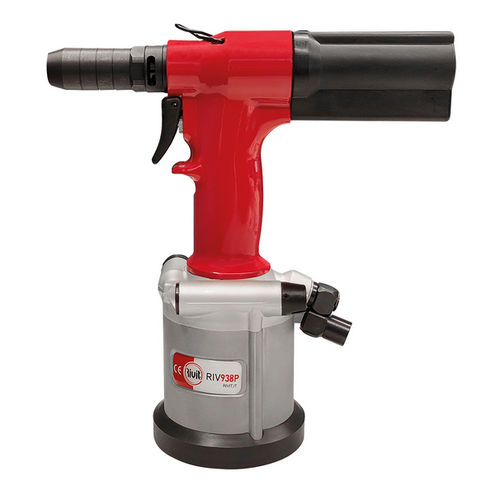

Pneumatic riveter RIV938P

pneumatically-actuatedmotorizedair-operated

Product description
The RIV938P oil‑pneumatic insert riveter is designed for installing female threaded inserts RIVSERT (M3–M10) and male threaded inserts RIVBOLT (M4–M10). It features a robust construction and is optimized for high‑productivity industrial environments.

Key features

• Boosted pneumatic motor to increase insert tightening and loosening speed
• Exclusive pneumatic piston return (no return spring) for improved efficiency
• Integrated, sturdy cone holder and tiltable balancer hook
• Motor protection, color code for force adjustment and swivel air connection
• Anti‑drop rubber protection, ergonomic grip and one‑stage quick actuation button
• Easy maintenance

Composed of

• 1 x 100 cc hydraulic oil
• 1 x adjustment pin
• 1 x 3 mm adjustment key
• 1 x universal wrench

Note
The RIV938P is supplied without the front head kit.

Typical applications

• Automotive, mechanical industry, metal structures (open cylindrical Rivsert)
• Tanks, sealed compartments, vats (blind cylindrical Rivsert)
• Food‑sector mechanics (hexagonal and semi‑hexagonal Rivsert)
• Metalworking, mechanical industry, electronics, automotive (Rivbolt)

Packaging
Practical and durable carrying case with comprehensive accessories, suitable for professionals and industrial use.

Characteristics / technical specifications

• Brand Statim: Rivit
• Operating air pressure (bar): 6.0
• Air pressure min - max (bar): 5 - 7
• Air consumption per cycle at 6 bar (L): 5.0
• Max stroke (mm): 6.5
• Force (N): 20,000
• Motor tightening speed (rpm): 2200.0
• Motor loosening speed (rpm): 2600
• Weight (kg): 2.1
• Vibrations (m/s²): < 2.5
• Noise level dB(A): < 76.0
