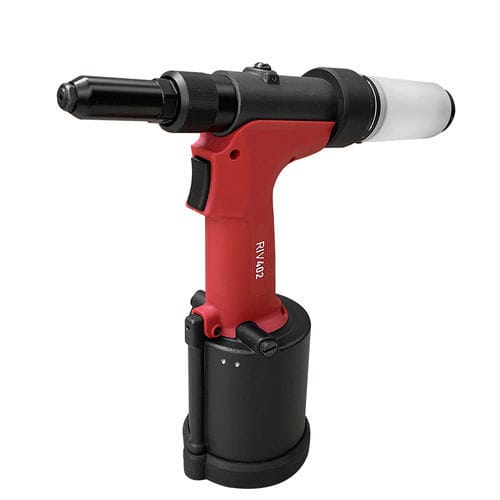

Hydro-pneumatic riveter RIV402

oleo-pneumaticfor blind rivetscompact

Hydropneumatic tool for standard blind rivets from d. 3.2 to d. 4.8mm.
Excellent fastening performance, thanks to a stroke of 18 mm and a force of 9230 N.
Compact dimensions, excellent ergonomics, with a weight of 1.3kg only.
Practical semi-transparent mandrel container for easy and safe emptying.
Rivet suction function for a faster operator use.
Practicality combined with excellent ergonomics make it absolutely attractive to all customers who use it continuously and professionally.

• Marked nozzle for easy rivet Ø matching.
• Knurled ring nut for hand locking of the cone.
• Cone made of steel for greater strength and durability.
• Upper setting for balancer hook.
• Integrated suction system which is activated only when the container is mounted.
• Semi-transparent container for nails easily removable.
• Start button large and well integrated in the structure.
• Ergonomic handle improves the tool use.
• Predisposition for air supply connection plus open/closed valve supplied (on both sides).
• Protective and anti-slip rubber base for air body.

Composed of:

• with mounted nozzle Ø 4.8
• 1 nozzle Ø 3.2, 4.0
• 1 balancer hook
• 1 air connection
• 1 oil syringe
• 1 wrench12-14 mm

Application
General, tanks, tubs. (Standard, sealed rivets)
Plastics, fiberglass. (Treriv rivets)
Wooden boxes. (Goriv rivets)
Batteries, cabinets, electrical control panels. (Masriv rivets)

Packaging
New cardboard packaging that is lightweight, easyto-handle, versatile and environmental friendly.
The right choice for every need, from the professional to the do-it-yourself.
