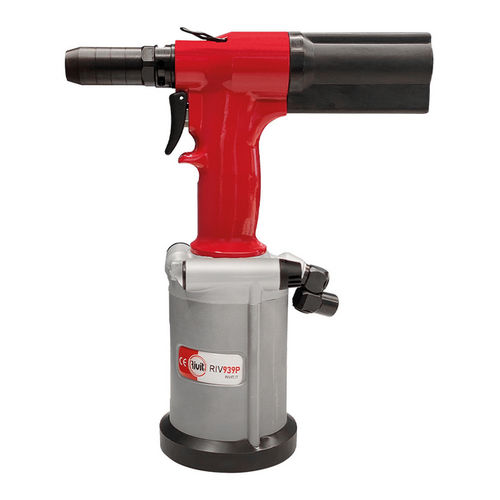

Pneumatic riveter RIV939P

hydro-pneumaticfor insertsfor nut

Product description
The hydropneumatic RIV939P tool is designed to install RIVSERT female rivet nuts (M3–M12) and RIVBOLT male rivet nuts (M4–M10). It features a compact, rigid structure and a pneumatic piston return system that eliminates a spring return, improving cycle consistency and machine integration.

Features

• Engineered for industrial, high-throughput applications where cycle time is critical.
• High pneumatic engine speed to reduce rivet nut fastening cycle time.
• Maximum force: 26,600 N.
• Robust kit holder cone integrated into the tool body.
• Integrated tilting balancer hook for overhead support.
• Protected motor housing.
• Colour coding for quick force adjustment and kit identification.
• Swivelling air connection to facilitate operator movement.
• Rubber protection for impact and fall resistance.
• Designed for easy maintenance and long service intervals.
• Ergonomic handle for operator comfort during long cycles.
• Start button: single‑phase start control.
• Supplied in a case; frontal head kit is not included (available on request for M3–M12).

Composed of

• 1 hydraulic oil 100 cc
• 1 adjustment pin
• 1 3 mm adjustment key
• 1 universal key
• 1 ring for balancer

Applications

• Automotive assembly and general mechanical industry (RIVSERT cylindrical open)
• Fabrication of tanks, airtight enclosures and tubs (RIVSERT cylindrical blind)
• Food industry machinery (RIVSERT hexagonal and half‑hexagonal types)
• Metalworking, mechanical components, electronics and automotive (RIVBOLT)

Packaging
Delivered in a durable, practical case with essential accessories for professional use and industrial environments.

Technical specifications

• Brand: Rivit
• Air working pressure (bar): 6.0
• Min/Max air pressure (bar): 5 - 7
• Air consumption per cycle at 6 bar (L): 5.0
• Max stroke (mm): 6.5
• Max force (N): 26,600
• Motor speed (spin on) (rpm): 2200
• Motor speed (spin off) (rpm): 2600
• Weight (kg): 2.2
• Vibrations (m/s²): < 2.5
• Noise level dB(A): < 76.0
