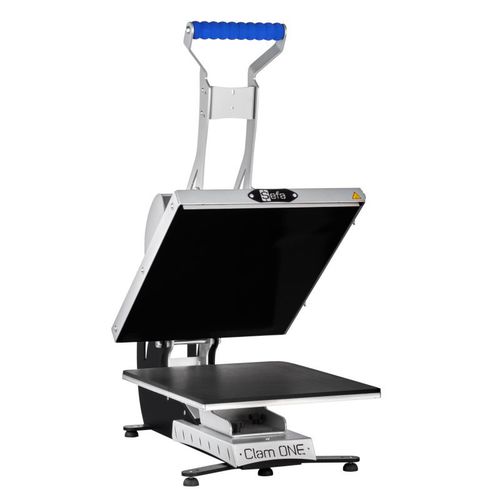

Manual press CLAM ONEheat transferfor the textile industryhot-platen
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Function
- heat transfer
- Applications
- for the textile industry
- Structure
- hot-platen
- Control
- hand-operated
- Other characteristics
- with front loading/unloading
- Table width
400 mm
(16 in)- Table length
500 mm
(20 in)- Max. pressure
0 bar
(4 psi)- Overall length
86 cm
(34 in)- Overall width
74 cm
(29 in)- Overall height
46 cm
(18 in)
Description
Short description
This entry-level manual heat transfer press with portfolio (clam) opening is built on a CLAM PRO-derived frame for enhanced robustness. It features a reversible sleeve and the Quick Release platen attachment system. Suited to textile marking, direct printing inks, laser transfer and small series production.
Included
Nomex® cover for 40x50 cm platen included.
More info
Manual heat transfer press with 40x50 cm platen; Nomex® cover included.
Strengths
Technical specifications
This entry-level manual heat transfer press with portfolio (clam) opening is built on a CLAM PRO-derived frame for enhanced robustness. It features a reversible sleeve and the Quick Release platen attachment system. Suited to textile marking, direct printing inks, laser transfer and small series production.
Included
Nomex® cover for 40x50 cm platen included.
More info
Manual heat transfer press with 40x50 cm platen; Nomex® cover included.
Strengths
- Manual operation
- Front-loading T-shirt access to platen
- Optimised pre-heat time
- Designed and manufactured in France
- 2-year machine warranty
- 10-year warranty on heating elements
Technical specifications
- Reference: CLAM ONE V3
- Type: Manual
- Operation: Clam - Portfolio opening
- Platen size: 40x50 cm / 16x20"
- Weight: 44 kg
- Pressure: 254 gr/cm²
- Max temperature: 220 °C / 429 °F
- Power: 2200 W
- Power supply: 240 V Single-phase + Neutral + Ground
- Amperage: 10 A
- Applications: Flex, Pretreatment, Textile Sublimation, Laser Transfer, Screen Printing
- Dimensions: 857 x 742 x 455 mm
Catalogs
CLAM ONE V3
2 Pages
