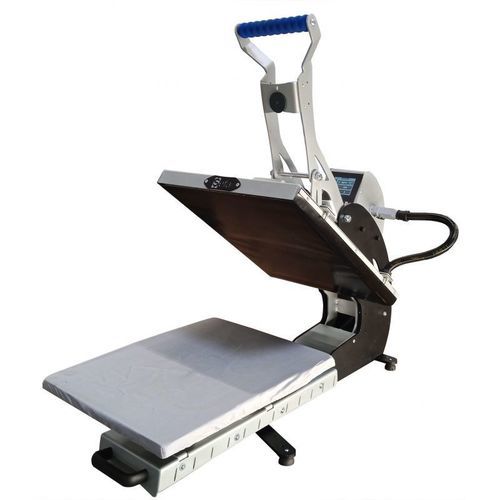

Manual press e-CLAM PRO 2 POS

thermocompressionfor aluminumfor wood

Short description
The e-CLAM PRO 2 POS is an electromagnetic heat press with two selectable pressure positions for switching from high to low pressure without adjusting the pressure knob. Suitable for medium-volume textile marking, textile sublimation, sublimation on rigid substrates (aluminium, MDF, wood, porcelain, etc.), drying pretreatment and inks in direct printing, and laser transfers.

Features (icons)

• Electromagnetic
• Iron
• QR
• Presets
• 3-year machine warranty
• 10-year heating element warranty

Strengths

• Auto-open
• Quick-change platens
• T-shirts can be loaded from the front or rear of the platen
• Programmable pre-heat time
• Dual item counter
• Two-position option to switch from strong to light pressure without touching the pressure knob
• Designed and manufactured in France
• 3-year machine warranty
• 10-year warranty on heating elements

Electronics

• Electronics developed by SEFA
• Accurate and fast regulation (PID control)
• Double timer (main + pre-heat)
• 2 cycle counters
• 3 settable programs
• Stop cycle function

Applications

• Flex
• Direct to Garment (DTG)
• Pretreatment drying
• Sublimation on rigid substrates
• Textile sublimation
• Laser transfer
• Screen printing

Data sheet
Type: Electromagnetic
Operation: Slide - Tray with drawer, Clam - Portfolio opening
Platen size: 40 x 50 cm / 16x20"
Max thickness: 15 mm
Weight: 58 kg / 128 lbs
Pressure: 330 g/cm²
°C / °F Max: 220 °C / 429 °F
Power: 2200 W
Power supply: 240 V Single-phase + Neutral + Ground
Amperage: 10 A
Applications (summary): Flex, Direct to Garment, Pretreatment, Sublimation on rigid substrates, Textile sublimation, Laser transfer, Screen printing
Dimensions: 993 x 973 x 455 mm / 39 x 38 x 17"

Technical specifications

• Model: e-CLAM PRO 2 POS
• Type: Electromagnetic press
• Platen size: 40 x 50 cm (16 x 20")
• Maximum material thickness: 15 mm
• Operating modes: Slide / Clam (drawer-type lower plate)
• Max temperature: 220 °C (429 °F)
• Power: 2200 W
• Supply: 240 V single-phase + N + G
• Amperage: 10 A
• Pressure: 330 g/cm²
• Weight: 58 kg
• Machine dimensions: 993 x 973 x 455 mm
• Key electronics: PID regulation, double timer, 2 cycle counters, 3 settable programs
