Manual press CLAM INIT

heat transferfor plasticsfor textiles

Overview

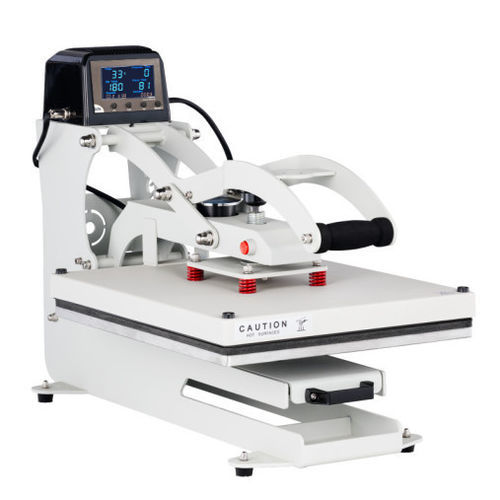

CLAM INIT (Initium range). Manual clamshell heat press for transfer applications on textiles and rigid substrates. Designed for entry-level professional use with precise temperature and time control.

Included
40x50 cm Nomex® cover included.

Highlights

• Uniform heat and pressure distribution
• Single 40x50 cm (16x20 in) platen
• Slide-out tray with drawer
• Clamshell (portfolio) opening
• Suitable for laser transfer, sublimation and flex on textiles and rigid materials
• Designed and manufactured in France
• 2-year warranty on machine and heating elements

Electronics & Controls

• PID temperature regulation for accurate and fast control across transfer processes (flex, flock, sublimation, screen-print transfer)
• Dual cyclic timers (press time + pre-press time)
• Two-piece counters (resettable daily counter and machine totalizer)
• Three programmable presets
• Adjustable energy-saving sleep mode
• Configurable end-of-cycle buzzer
• Time range: 0 to 999 sec (±1% accuracy)
• Temperature range: 0 to 230 °C (±1% accuracy)
• Heating time 15 → 180 °C: approx. 12 min

Applications

• Flex
• Direct-to-Garment (DTG) support processes
• Pretreatment
• Sublimation on rigid substrates
• Textile sublimation
• Laser transfer
• Screen-print transfer

Technical specifications

• Type: Manual
• Operation: Clam (portfolio opening) with slide tray and drawer
• Platen size: 40x50 cm (16x20 in)
• Max thickness: 15 mm
• Weight: 58 kg (128 lbs)
• Pressure: 330 g/cm²
• Max temperature: 220 °C (429 °F)
• Power: 1800 W
• Power supply: 240 V single-phase + N + PE
• Amperage: 7 A
• Dimensions: 969 x 990 x 453 mm (38 x 39 x 18 in)
