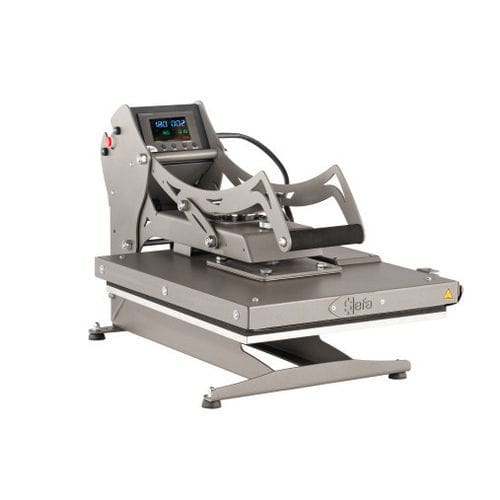

Manual press CLAM

for textiles

Short description
CLAM range First. SEFA presents its FIRST range: a line of heat presses designed as an accessible entry point into the SEFA product line. Professional functions with controlled features. Designed and manufactured in France.

Content
Included: Nomex® cover 40 x 50 cm.

Strengths

• Uniform heat and pressure distribution
• Single platen 40 x 50 cm (16 x 20 in)
• Robust frame and updated design
• Automatic opening by electromagnet on Plus version
• Suitable for laser transfer and sublimation on textiles and rigid substrates
• Ideal for small production runs
• Warranty: 2 years machine / 10 years heating elements

Electronics

• Fast, precise PID control
• Compatible with flex, flock, sublimation, screen printing, laser transfer, direct-to-garment and pretreatment
• Advanced electronics with double timer (main + preheating)
• 2 part counters
• 3 programmable memory slots
• Energy-saving mode and stop cycle function
• Timer range: 0–600 s (±1%)
• Temperature range: 0–220 °C (±1%)
• Heating time 15→180 °C: approx. 12 min

Data sheet
Type: Manual
Operation: Clam - Portfolio opening
Platen size: 40 x 50 cm / 16 x 20 in
Max thickness: 15 mm
Weight: 40 Kg / 88 lbs
Pressure: 330 g/cm²
Max temperature: 220 °C / 429 °F
Power: 2200 W
Power supply: 240 V single-phase + neutral + earth
Amperage: 10 A
Applications: Flex, Direct to Garment, Pretreatment, Rigid substrate sublimation, Textile sublimation, Laser transfer, Screen printing
Dimensions: 748 x 455 x 850 mm / 29.4 x 17.9 x 33.5 in

Technical specifications

• Platen: 40 x 50 cm (16 x 20 in)
• Type: Manual clam press (portfolio opening)
• Max thickness: 15 mm
• Machine weight: 40 Kg (88 lbs)
• Nominal pressure: 330 g/cm²
• Max temperature: 220 °C (429 °F)
• Electrical power: 2200 W
• Power supply: 240 V single-phase + neutral + earth
• Amperage: 10 A
• Control system: PID regulation, double timer, 2 counters, 3 programmable programs, energy-saving mode, stop cycle
• Heating time 15→180 °C: approx. 12 minutes
• Typical applications: flex, DTF, pretreatment, sublimation (textile and rigid), laser transfer, screen printing
• Warranty: 2 years machine / 10 years heating elements
