Manual press e-CLAM PRO

heat transferfor textilesfor the textile industry

Short description

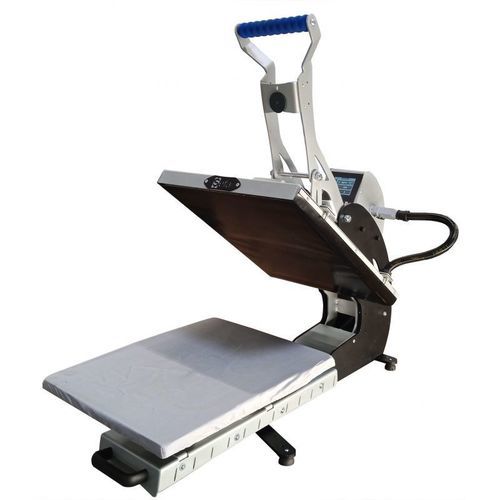

Originally created for applying flex and screen printing transfers in sports shops, the e-CLAM PRO is an automatic clam heat press designed for medium-volume textile marking, textile sublimation, sublimation on rigid substrates (aluminium, MDF, wood, porcelain) and for pre-treatment drying, DTG ink drying and laser transfer applications.

Highlights

• Automatic opening heat press with sliding lower platen
• 40x50 cm Nomex® cover included
• Quick-change platens
• T-shirt loading from the front or the back of the platen
• Programmable pre-heating time
• Dual piece counter
• Designed and manufactured in France
• 3-year warranty on the machine
• 10-year warranty on the heating elements

SEFA Electronics

• Touchscreen developed by SEFA
• Fast and precise regulation (PID control)
• Adaptive regulation depending on the application: flex, textile sublimation, rigid substrates, DTG
• Fully editable recipes
• Multi-timer (up to 2 independent timers)
• Cycle counter
• Stop cycle function
• ECO mode
• Time range: 0 to 60 minutes (precision ±1%)
• Temperature range: 15 to 220 °C (precision ±1%)
• Heating time to reach 180 °C: 12 minutes

Main applications

• Flex application
• Direct-to-garment (DTG) printing
• Textile pre-treatment drying
• Textile sublimation
• Sublimation on rigid substrates
• Laser transfer
• Screen printing transfers

Technical specifications

• Type: Electromagnetic
• Operation: Clam - portfolio opening
• Platen size: 40x50 cm / 16x20"
• Max thickness: 15 mm
• Weight: 58 Kg / 128 lbs
• Pressure: 330 g/cm²
• Max temperature: 220 °C / 429 °F
• Power: 2200 W
• Power supply: 240 V Single-phase + Neutral + Ground
• Amperage: 10 A
• Dimensions: 993 x 973 x 455 mm / 39 x 38 x 17"
