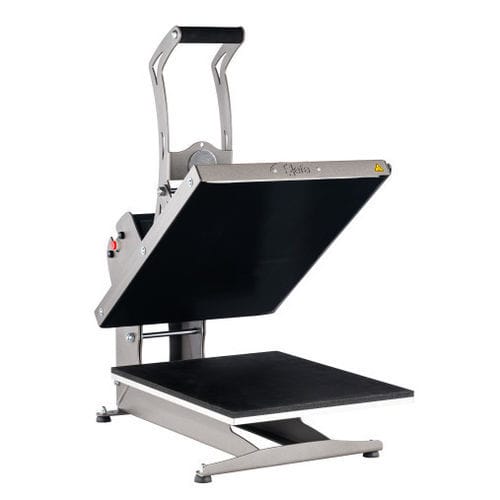

Manual press CLAM +heat transferfor textileswith heating plates
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Function
- heat transfer
- Applications
- for textiles
- Structure
- with heating plates, hot-platen
- Control
- automatic
- Other characteristics
- hot, transfer
- Opening
15 mm
(1 in)- Table width
400 mm
(16 in)- Table length
500 mm
(20 in)- Overall length
97 cm
(38 in)- Overall width
99 cm
(39 in)- Overall height
45 cm
(18 in)
Description
Overview SEFA introduces its FIRST range: Essential, Reliable, Accessible. A line of heat presses designed as the ideal entry point into the SEFA universe. Professional transfer solution at an affordable price, combining reliability, simplicity and durability. Made in France and built to SEFA quality standards.
Key features
Electronics
Data sheet Type: Electromagnetic
Operation: Clam - Portfolio opening
Platen size: 40x50 cm / 16x20"
Max thickness: 15 mm
Weight: 58 Kg / 128 lbs
Pressure: 330 g/cm²
Max temperature: 220 °C / 429 °F
Power: 2200 W
Power supply: 240 V Single-phase + Neutral + Ground
Amperage: 10 A
Applications: Flex, Direct-to-Garment, Pretreatment, Sublimation on rigid substrates, Textile sublimation, Laser transfer, Screen printing
Dimensions: 969 x 990 x 453 mm / 38 x 39 x 18"
Technical specifications
Key features
- Automatic opening by electromagnet
- Uniform heat and pressure distribution
- Single platen 40x50 cm (16x20") with Nomex® cover included
- Robust frame
- Suitable for laser transfer applications and sublimation on textiles and rigid substrates
- Ideal for small productions and workshop use
- Designed and manufactured in France
- 2-year machine warranty; 10-year warranty on heating elements
Electronics
- Precise, fast PID control for a wide range of transfer products: flex, flock, sublimation, screen-transfer
- Advanced electronics with user-friendly interface
- Double timer (main + preheating)
- 2 piece counters
- 3 editable programs
- Energy-saving mode
- Stop cycle function
- Time range: 0 to 600 s (precision ±1%)
- Temperature range: 15 to 220 °C (precision ±1%)
- Heating time from 15 to 180 °C: approx. 12 min
Data sheet Type: Electromagnetic
Operation: Clam - Portfolio opening
Platen size: 40x50 cm / 16x20"
Max thickness: 15 mm
Weight: 58 Kg / 128 lbs
Pressure: 330 g/cm²
Max temperature: 220 °C / 429 °F
Power: 2200 W
Power supply: 240 V Single-phase + Neutral + Ground
Amperage: 10 A
Applications: Flex, Direct-to-Garment, Pretreatment, Sublimation on rigid substrates, Textile sublimation, Laser transfer, Screen printing
Dimensions: 969 x 990 x 453 mm / 38 x 39 x 18"
Technical specifications
- Type: Electromagnetic
- Operation: Clam - Portfolio opening
- Platen size: 40 x 50 cm (16 x 20")
- Maximum thickness: 15 mm
- Weight: 58 Kg (128 lbs)
- Pressure: 330 g/cm²
- Maximum temperature: 220 °C (429 °F)
- Power: 2200 W
- Power supply: 240 V Single-phase + Neutral + Ground
- Amperage: 10 A
- Applications: Flex, Direct-to-Garment, Pretreatment, Sublimation on rigid substrates, Textile sublimation, Laser transfer, Screen printing
- Overall dimensions: 969 x 990 x 453 mm (38 x 39 x 18")
