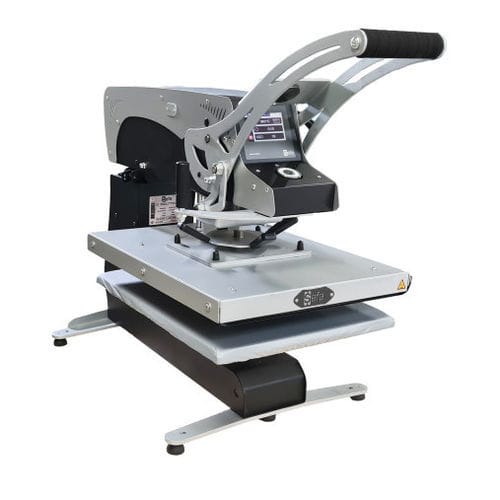

Electric press E-ROTEX PRO

heat transferfor the textile industryrotating table

Short description
The high heating power, sturdy frame and auto-swing function make the E-ROTEX PRO the first choice for multiple marking requirements such as medium-volume flex and screen printing transfer applications, sublimation on textiles and rigid substrates, DTG and laser printing.

Main features

• Auto-open and auto-swing
• High-power heating for DTG pre-treatment drying
• Quick-change platens
• T-shirts threaded from front or rear of platen
• Pre-heat time
• Nomex® cover of 40x50 cm included
• Also available in IND model with integrated height indicator
• Designed and manufactured in France
• Two-year machine warranty
• Ten-year warranty on heating elements

Electronics

• Time control
• Temperature control
• Preheating time
• 5 recipes (time/temperature/substrate)
• Adaptive regulation depending on the application (sublimation, textile, DTG)
• Eco mode
• Double pieces counter

Datasheet
Type: Electromagnetic
Operation: Swing - Rotating Plate
Platen size: 40x50 cm / 16x20 \"
Max thickness: 17 mm
Weight: 81 Kg / 179 lbs
Pressure: 590 g/cm²
°C / °F Max: 220 °C / 429 °F
Power: 2200W
Power supply: 240 V Single-phase + Neutral + Ground
Amperage: 10 A
Applications: Flex, ChromaLuxe, Direct to Garment, Pretreatment, Sublimation Rigid Substrate, Textile Sublimation, Laser Transfer, Screen Printing
Dimension: 759x909x569 mm / 30x36x22 \"

Technical specifications

• Model: E-ROTEX PRO
• Type: Electromagnetic
• Operation mode: Swing - Rotating Plate (auto-open, auto-swing)
• Platen dimensions: 40 x 50 cm (16 x 20 \")
• Maximum material thickness: 17 mm
• Maximum temperature: 220 °C (429 °F)
• Heating power: 2200 W
• Power supply: 240 V single-phase + N + Earth
• Amperage: 10 A
• Pressure: 590 g/cm²
• Net weight: 81 Kg (179 lbs)
• Overall dimensions: 759 x 909 x 569 mm (30 x 36 x 22 \")
• Included: Nomex® cover 40x50 cm
• Controls: Time, Temperature, Preheat, 5 stored recipes, adaptive regulation, eco mode, piece counters
• Applications supported: Flex, ChromaLuxe, DTG, pretreatment, textile and rigid substrate sublimation, laser transfer, screen printing
• Warranty: 2 years on machine, 10 years on heating elements
