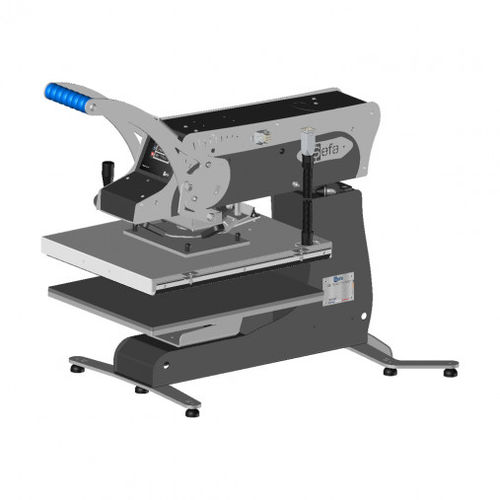

Manual press ROTEX ONE V5

heat transferfor plasticsfor textiles

Short description
The ROTEX ONE v5 is an entry-level manual swing heat press offering expanded customization: parallel platens enable sublimation on textiles and rigid substrates. A Nomex® 40x50 cm cover for the lower platen is included.

Overview
Manual-opening, manual-swing heat transfer press with rotating platen. Compact footprint and accessible loading thanks to the swing design.

Suitable for

• Low-volume flex and screen-print transfer production
• Sublimation on textiles
• Sublimation on rigid substrates
• Laser transfer applications
• Direct to Garment (DTG) finishing

Strengths

• Platen swings fully clear to the side for easy loading
• Parallel platens for sublimation on both textiles and rigid substrates
• Short pre-heat time for faster setup
• Dual pieces counter for production tracking
• Designed and manufactured in France
• Two-year machine warranty
• Ten-year warranty on heating elements

Electronics

• Time control
• Temperature control
• Preheating time setting
• Five programmable recipes (time/temperature/substrate)
• Adaptive regulation per application (sublimation, textile, DTG)
• Eco mode
• Double item counter

Data sheet
Type: Manual
Operation: Swing - Rotating Plate
Platen size: 40x50 cm / 16x20 "
Max thickness: 17 mm
Weight: 80 Kg / 176 lbs
Pressure: 590 g/cm²
°C / °F Max: 220 °C / 429 °F
Power: 2200W
Power supply: 240 V Single-phase + Neutral + Ground
Amperage: 10A
Applications: Flex, Direct to Garment, Sublimation on Rigid Substrates, Textile Sublimation, Laser Transfer, Screen Printing
Dimension: 759x909x569 mm / 30x35x22 "

Caractéristiques / spécifications techniques

• Manual swing platen for easy access and loading
• Parallel platens enabling sublimation on both textiles and rigid substrates
• Included Nomex® 40x50 cm cover for lower platen protection
• Max operating temperature 220 °C (429 °F)
• Maximum platen pressure 590 g/cm²
• Power consumption 2200W; supply 240 V single-phase; 10A
• Platen usable area 40x50 cm (16x20 ")
• Maximum substrate thickness 17 mm
• Machine weight approx. 80 kg
• Pre-programmable recipes: 5 time/temperature/substrate presets
• Adaptive regulation and eco mode for different applications
• Dual item/pieces counter
• Two-year warranty on machine; ten-year warranty on heating elements
