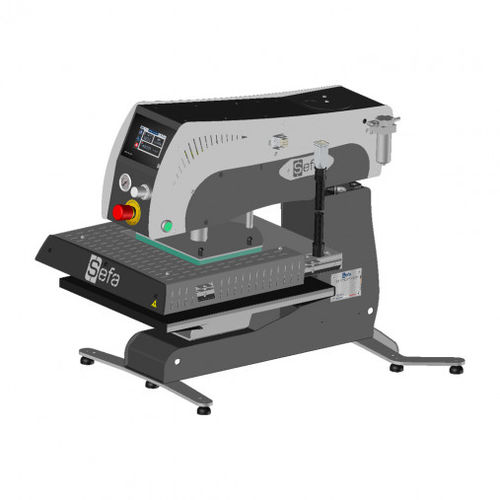

Pneumatic press E-ROTEX AIR LITE

heat transferfor plasticsfor textiles

Product overview
The e-ROTEX AIR LITE is a pneumatic heat press designed for medium-volume textile marking, sublimation on textiles and rigid substrates, laser transfers and related processes. Closing is pneumatic and requires simultaneous pressing of two push-buttons for simplified operator handling. Nomex® platen cover 40x50 cm included.

Strengths

• Auto-open and auto-close
• Platen swings fully clear to the side for easy loading
• Pre-heat function
• Dual piece counter
• Designed and manufactured in France
• Two-year machine warranty
• Ten-year warranty on heating elements

Electronics

• Time control
• Temperature control
• Preheating time setting
• 10 memory recipes (time/temperature/substrate)
• Adaptive regulation per application (sublimation, textile, DTG)
• Eco mode
• Standby mode
• Double piece counter

Applications

• Heat transfer vinyl (Flex)
• Direct-to-garment (DTG)
• Sublimation on rigid substrates
• Textile sublimation
• Laser transfer
• Screen printing transfers

Technical data

• Type: Pneumatic
• Operation: Swing - Rotating plate
• Platen size: 40 x 50 cm (16 x 20 in)
• Max thickness: 17 mm
• Weight: 81 kg (179 lbs)
• Pressure: 400 g/cm²
• Maximum temperature: 220 °C (429 °F)
• Power: 2200 W
• Power supply: 240 V single-phase + neutral + earth
• Amperage: 10 A
• Dimensions (W x D x H): 621 x 847 x 572 mm (24 x 33 x 22 in)
• Included: Nomex® platen cover 40 x 50 cm
